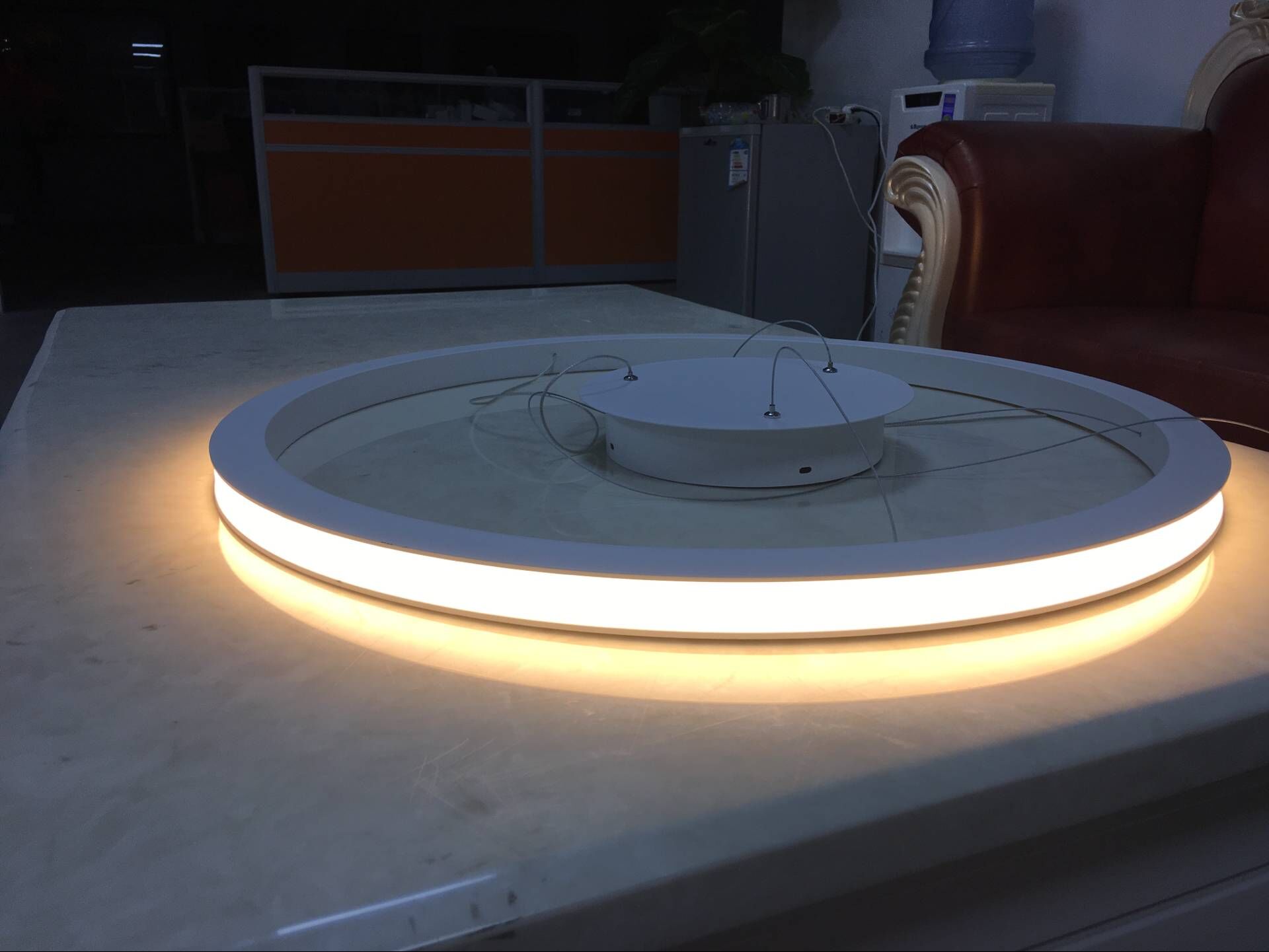

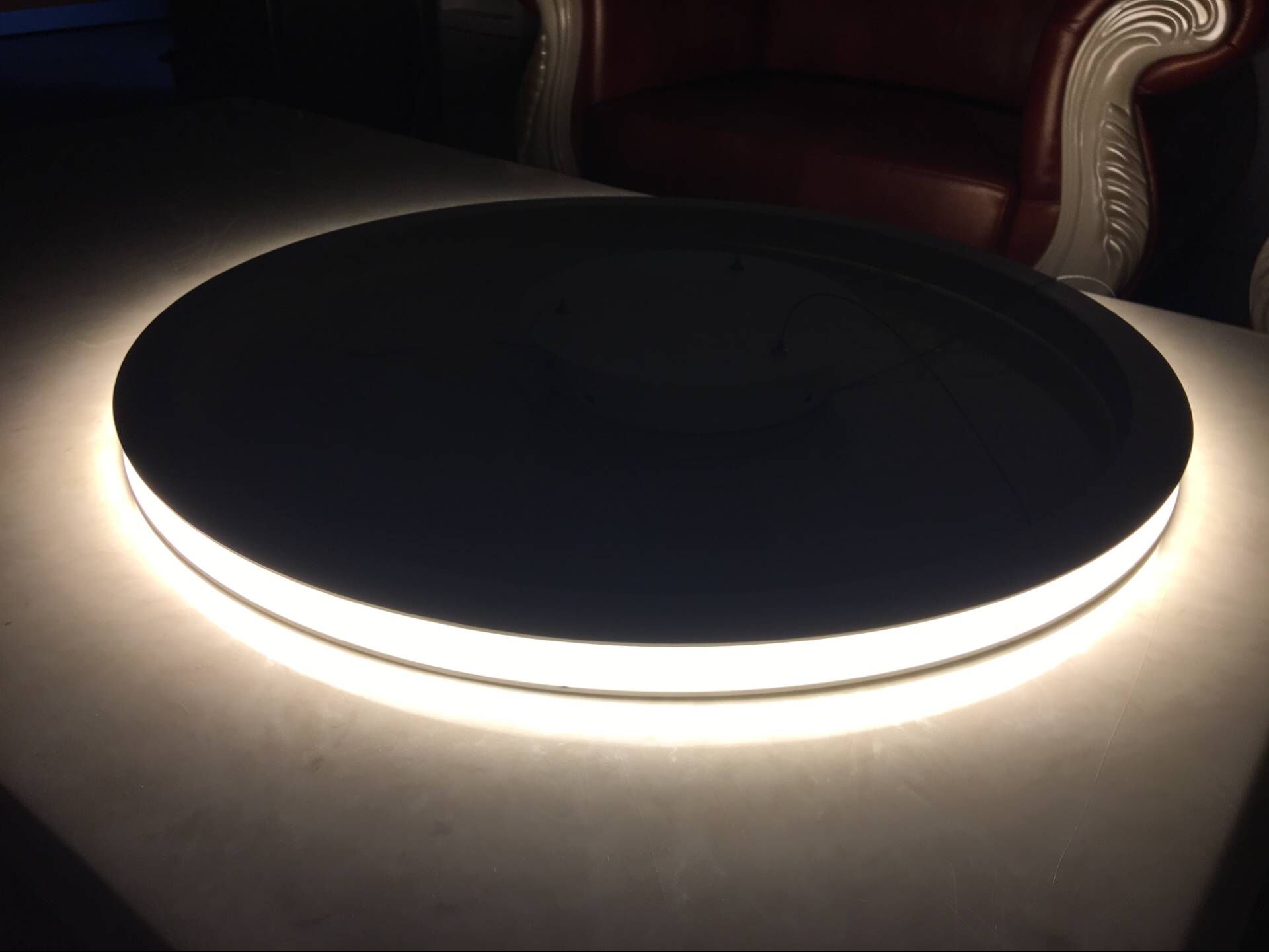

LED Outer Emitting Surface Mounted Ring Light LL0126M

The outer emitting ring Light is a versatile architectural lighting solution. In architectural design, the application of ring lights are very diverse. We could choose different sizes, light emitting, installation ways and etc. to increase the charm of the building.

Many customers know NEW SHINE LIGHTING because of ring lights. The Ring Light stands out among the rest for range of features and options. Available as a pendant or surface mounted with direct, direct&indrect, inner, outer illumination. With central canopy suspended, direct suspension, surface mounted installation for option.
Standard Finish:
Customized Finish:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Model: LL0126M

Diameter(FT): 23.6", 35.4", 47.2", 59.1"

Diameter(MM): 600mm, 900mm, 1200mm, 1500mm

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧80

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC

Input Voltage: AC120-277V/ AC220-240V

LED Lifetime: >50,000H

Mounting: Pendant, Surface Mounted

Package: PE Foam with master carton


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

 Quite nice craftsmanship.

 No dark area, soft and even light distribution.

 Acoustic version with 38 acoustic felt colors for option.

 Direct, direct/indirect, inner, outer emmiting versions are available.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.

 For pendant ring light, size D5ft(D1500mm) and below D5ft(D1500mm), suspended with central canopy; for size above D5ft(D1500mm), suspended to ceiling straight.

Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
PF Efficacy
Body Color Beam (degree) Installation Material
LL0126M-32W 32W D600*35*32/ D23.6*1.4*1.3 AC120-277V/
≧80 3000K/
≧0.9 70LM/W White/
120 Surface Mounted Alu+PC
LL0126M-40W 40W D900*35*32/ D35.4*1.4*1.3
LL0126M-70W 70W D1200*35*32/ D47.2*1.4*1.3
LL0126M-80W 80W D1500*35*32/ D59.1*1.4*1.3


Data Sheet

Data Sheet





IES Files

IES Files
