Acoustic Light Square Ceiling Light Sky Light LL0202MAC

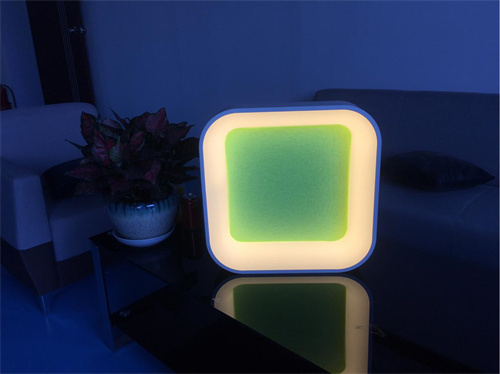

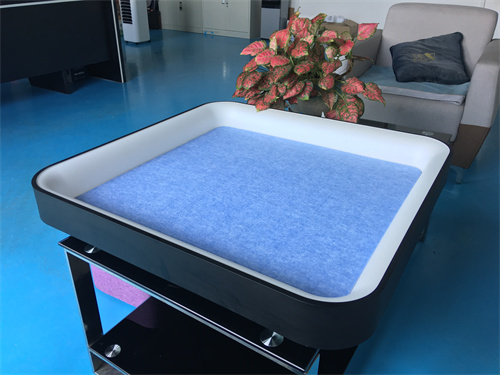

The Sky Light has a classic square style with an LED light source illuminating its inner surface, incoporating with acoustic in the middle, which combines sound absorption and lighting function to create an effective acoustic lighting solution. The aluminum body constructions comes with a good heat dissipation. Our Acoustic Sky Light will suit whatever spaces you have that needs it to be a quiet and comfortable, like conference room, hotel lobbies, library and other open spaces.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0202MAC

Size(inch): 14.2*14.2/17.7*17.7/23.6*23.6/31.5*31.5"

Size(MM): 360*360/450*450/600*600/800*800mm

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PMMA, polyester fiber

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: surface mounted

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

◆ LED light source illuminating its inner surface, incoporating with acoustic in the middle, which combines sound absorption and lighting function to create an effective acoustic lighting solution.

 Acoustic version with 38 acoustic felt colors for option.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0202MAC-15W 15W 360*360*116 / 14.2*14.2*4.6 AC120-277V/
AC220-240V
≧90 3000K/
3500K/
4000K
≧0.9 85lm/w White/
black
160 surface mounted Alu+PMMA
+polyester fiber
LL0202MAC-25W 25W 450*450*116 / 17.7*17.7*4.6
LL0202MAC-36W 36W 600*600*116 / 23.6*23.6*4.6
LL0202MAC-50W 50W 800*800*116 / 31.5*31.5*4.6


Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files
