Specification

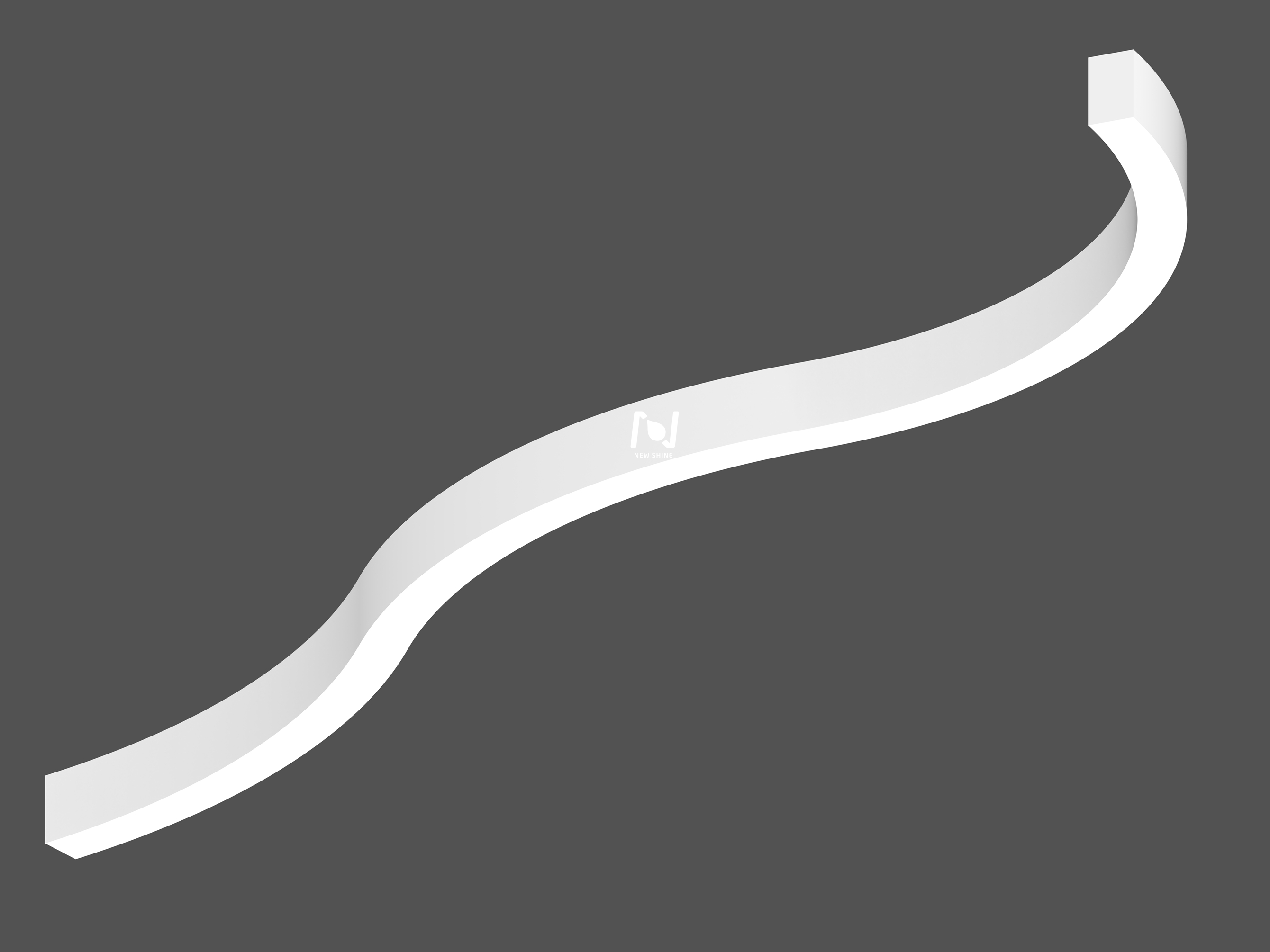

Model: LL055 CURVE
Size (INCH): The arc radis size to choose from the size are bigger than 11.8", standard radius: 11.8"/17.7"/23.6"/29.5"/39.4"/49.2"/59.0"/78.7"/98.4"
CCT: 3000K/3500K/4000K
Efficacy: ≧105lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: Cupower or equivalent
LED: Osram or equivalent
Material: Aluminum, PC
Input Voltage: AC220-240V / AC120-277V
LED Lifetime: >50,000H
Mounting: Pendant, Surface mounted, Recessed,
Wall surface mounted
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 3 color finishes(black, white, silver), can be customized.
◆ Quite nice craftsmanship, seamless connection.
◆ No dark area, soft and even light distribution.
◆ Direct and indirect illuminating for options. For direct: 9w/ft, for direct/indirect:12w/ft.
◆ Suspended, surface mounted, recessed(mud in flange, T-bar) installation are available.
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0155 CURVE S | 9w/ft | 50*75*(arc) / 2.0*3.0*(arc) | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 105LM/W | Silver/ White/ Black | 120 | 5ft (1.5m) aircraft cables&power cables going to ceiling straight | Alu+PC |
| LL0155 CURVE UDS | 12w/ft | 50*75*(arc) / 2.0*3.0*(arc) |
