Y Shape Linear Hanging Light LL0190UDS

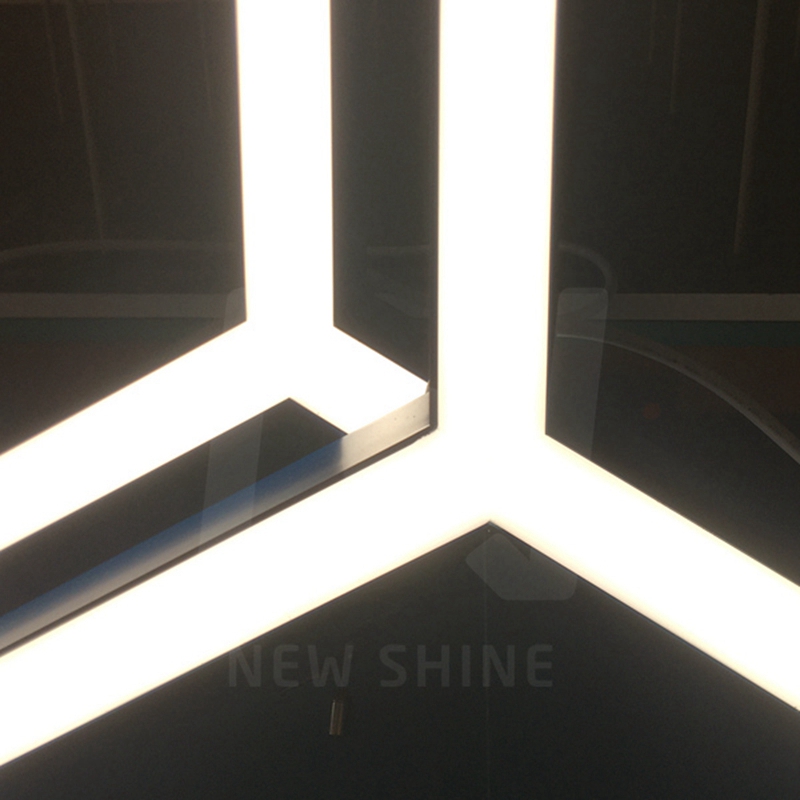

LL0190UDS is pendant light shaped like a letter "Y". The Y lighting coming with 3 sizes to fit the scale, proportions and light output requirements of the project. It's available in up/down lighting distribution, no LED hot spots. The standard finish is white/black for Y lighting pendants, the other finish can be customized to suit your project vibe.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0190UDS

Length(inch): L11.8/23.6/35.4"

Length(MM): L300/600/900mm

CCT: 3000K/3500K/4000K

Efficacy: 105lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant

Package: PE Foam with master carton

Features


 Flexible MOQ

 ETL listed, 5 years warranty

 2 color finishes(black, white), can be customized

 Quite nice craftsmanship.

 No dark area, soft and even light distribution

 Acoustic version with 38 acoustic felt colors for option.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0190UDS-50W

50W

(up 15w, down 35w)

563*501*90(L300) / 22.2*19.7*3.5(L11.8) AC120-277V/
AC220-240V
≧90 3000K/
3500K/
4000K
≧0.9 105lm/w White/
black
120*2 5ft (1.5m) aircraft cable&power cables going to ceiling straight Alu+PC
LL0190UDS-100W

100W

 (up 30w, down 70w)

1081*963*90(L600) / 42.6*37.9*3.5(L23.6)
LL0190UDS-140W

140W

 (up 40w, down 100w)

1600*1426*90(L900) / 63.0*56.1*3.5(L35.4)


Client Feedback:

"We are very happy with your products and our customers are happy as well.
