Recessed linear light fixture linear profile LL0148R-1200
Product specification:
Power | 50W |
Input Voltage | AC220V-240V or AC120V-277V |
CRI(Ra) | ≧90 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≧0.9 |
Efficiency | 105 lm/w |
Material | Aluminum, pc |
Product size | 105*75*1200mm/4.13*2.95*47.24" |
Other products in the same family:
| Model No. | Power | Size | Input Voltage | CRI | CCT | PF | Efficacy | Body Color | Beam | Installation | Material |
LL0105R-1200 | 25W | 50*30*1200mm / 1.97*1.18*47.24” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/5000K | ≧0.9 | 105lm/w | White/ black | 120 | Recessed | Alu+PC |
LL0105R-1500 | 36W | 50*30*1500mm / 1.97*1.18*59.06" | |||||||||
LL0105R-2400 | 50W | 50*30*2400mm / 1.97*1.18*94.49” | |||||||||
LL0106R-1200 | 36W | 65*35*1200mm / 2.59*1.38*47.24” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/5000K | ≧0.9 | 105lm/w | White/ black | 120 | Recessed | Alu+PC |
LL0106R-1500 | 50W | 65*35*1500mm / 2.59*1.38*59.06” | |||||||||
LL0106R-2400 | 70W | 65*35*2400mm / 2.59*1.38*94.49” | |||||||||
LL0147R-1200 | 40W | 95*35*1200mm / 3.74*1.38*47.24 ” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/5000K | ≧0.9 | 105lm/w | White/ black | 120 | Recessed | Alu+PC |
LL0147R-1500 | 60W | 95*35*1500mm / 3.74*1.38*59.06” | |||||||||
LL0147R-2400 | 80W | 95*35*2400mm / 3.74*1.38*94.49” | |||||||||
LL0148R-1200 | 50W | 105*75*1200mm / 4.13*2.95*47.24 ” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/5000K | ≧0.9 | 105lm/w | White/ black | 120 | Recessed | Alu+PC |
LL0148R-1500 | 70W | 105*75*1500mm / 4.13*2.95*59.06” | |||||||||
LL0148R-2400 | 100W | 105*75*2400mm / 4.13*2.95*94.49” | |||||||||
LL0149R-1200 | 50W | 115*35*1200mm / 4.53*1.38*47.24 ” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/5000K | ≧0.9 | 105lm/w | White/ black | 120 | Recessed | Alu+PC |
LL0149R-1500 | 80W | 115*35*1500mm / 4.53*1.38*59.06” | |||||||||
LL0149R-2400 | 100W | 115*35*2400mm / 4.53*1.38*94.49” |
Product Specialties:
1. It’s in 40W, 60w and 80W linear design.
2. Good for use in school, office, meeting room, etc.
3. Can be suspended and surface mounted.
4. Warranty is 5 years!

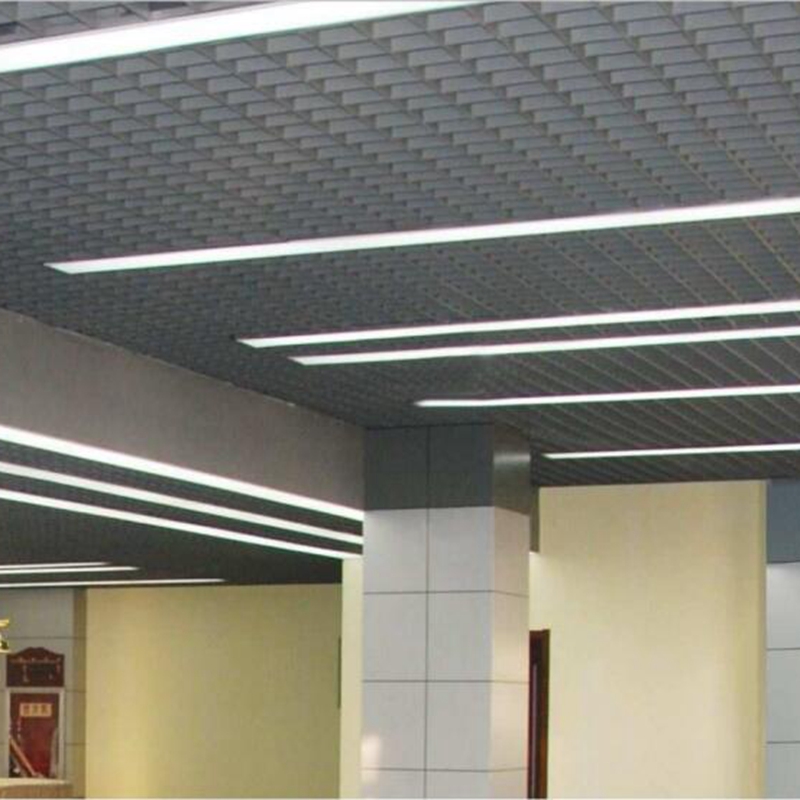

Wide Applications in hotels, offices, libraries, museums, etc
About New Shine:
1. New Shine Lighting focus on led architectural lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!
2. Solid project experience on different markets!
3. Quick architectural lighting solutions provider, 30 minutes for quotation and 2-3 days for samples!
Client Feedack:
"This is a product we already make with another supplier. But we would like to make this with you instead as we like working with you and you are a high quality supplier."
