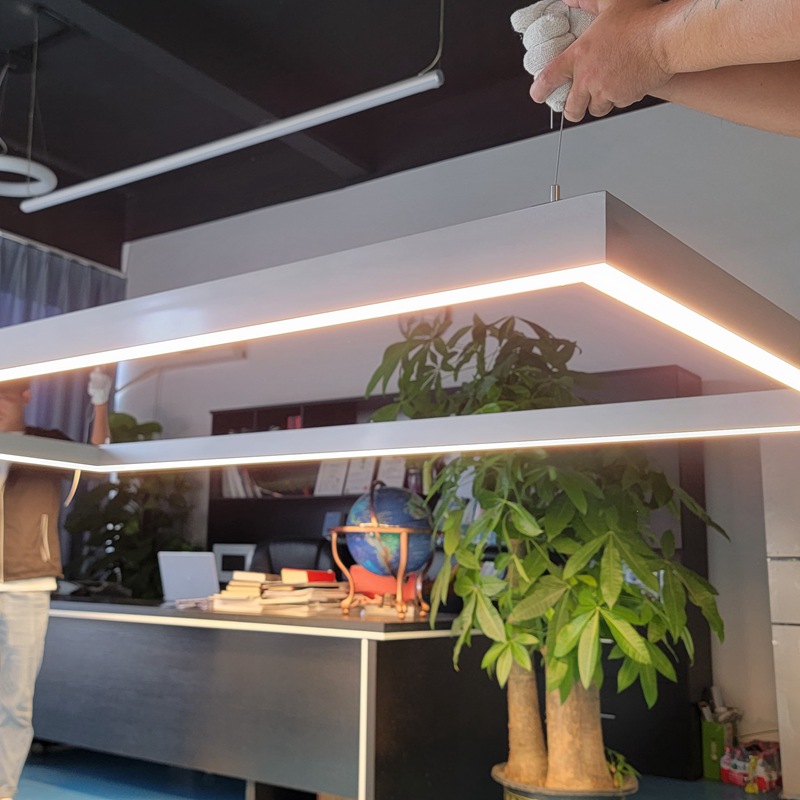

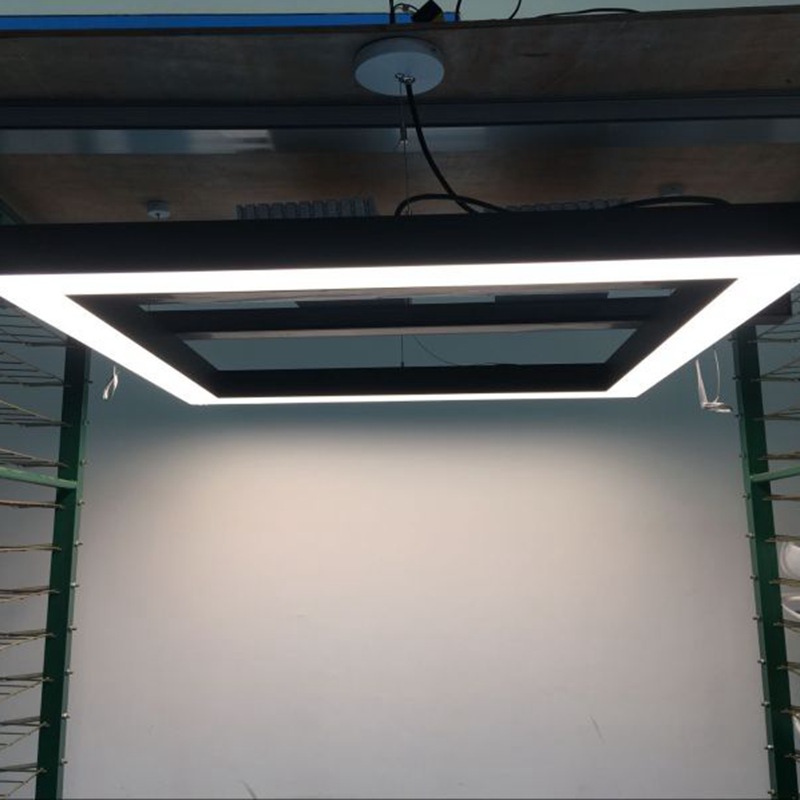

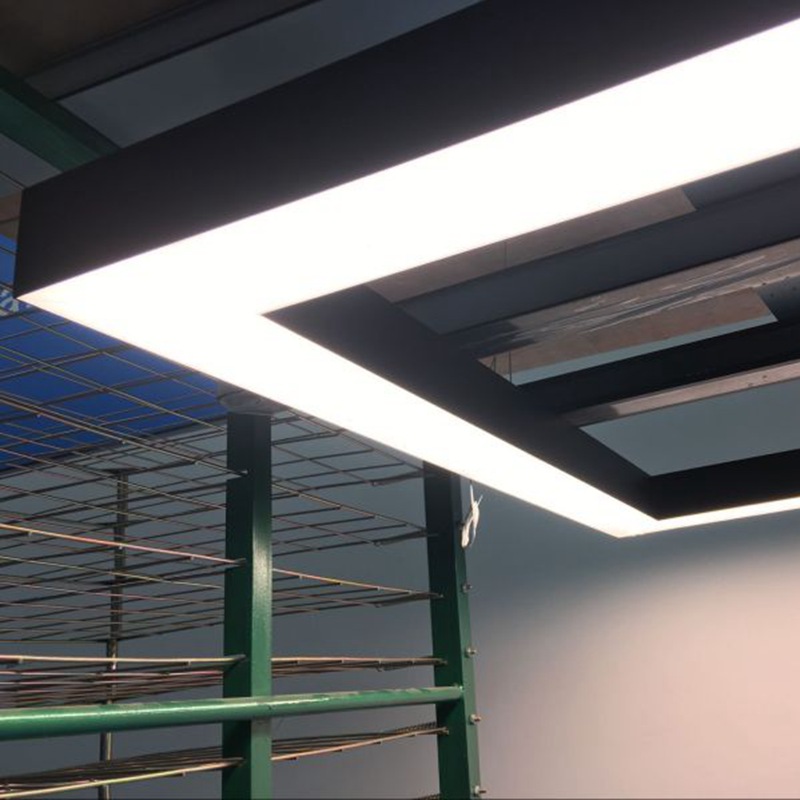

New Shine Lighting Frame light is built in high quality aluminum alloy with high transmission polycarbonic diffusers, 5 sizes ranging from 12*12" to 48*95" for option. It delivers very nice and even lighting distribution with shadowless and corner lit, which is widely used in conference room, office, hotel and other modern buildings.
New Shine Lighting offers a wide range of frame lights with multiple lighting distributions! We have square/hex/triangle with inner/outer/direct/indirect lighting. The sizes can achieve per your request with a seamless connection. These lighting fixtures series have the patent for a join system for easy operation and free-hand installation with excellent splicing effect.
Standard Finish:
Customized Finish:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Model: LL0116

Diameter(inch): 11.8*11.8/ 23.6*23.6/ 23.6*47.2/ 47.2*47.2/ 47.2*94.5"

Diameter(MM): 300*300/600*600/600*1200/1200*1200/1200*2400mm

CCT: 3000K/3500K/4000K

Efficacy: 105lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant, Surface mounted

Package: PE Foam with master carton


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

 Quite nice craftsmanship, no dark area, soft and even light distribution, lit corners, shadowless LED lighting and energy efficient performance provides excellent general lighting.

 Acoustic version with 38 acoustic felt colors for option.

 This distinctive architectural preconfigured fixture is ideal for circulation spaces, lobbies, conference room, hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.

Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
PF Efficacy
Body Color Beam (degree) Installation Material
LL0116S-15W 15W 300*300*75 / 11.8*11.8*3.0 AC120-277V/
90 3000K/
0.9 105lm/w White/
120 5ft (1.5m) aircraft cable&power cables going to ceiling straight Alu+PC
LL0116S-40W 40W 600*600*75 / 23.6*23.6*3.0
LL0116S-80W 80W 600*1200*75 / 23.6*47.2*3.0
LL0116S-160W 160W 1200*1200*75 / 47.2*47.2*3.0
LL0116S-320W 320W 1200*2400*75 / 47.2*94.5*3.0
