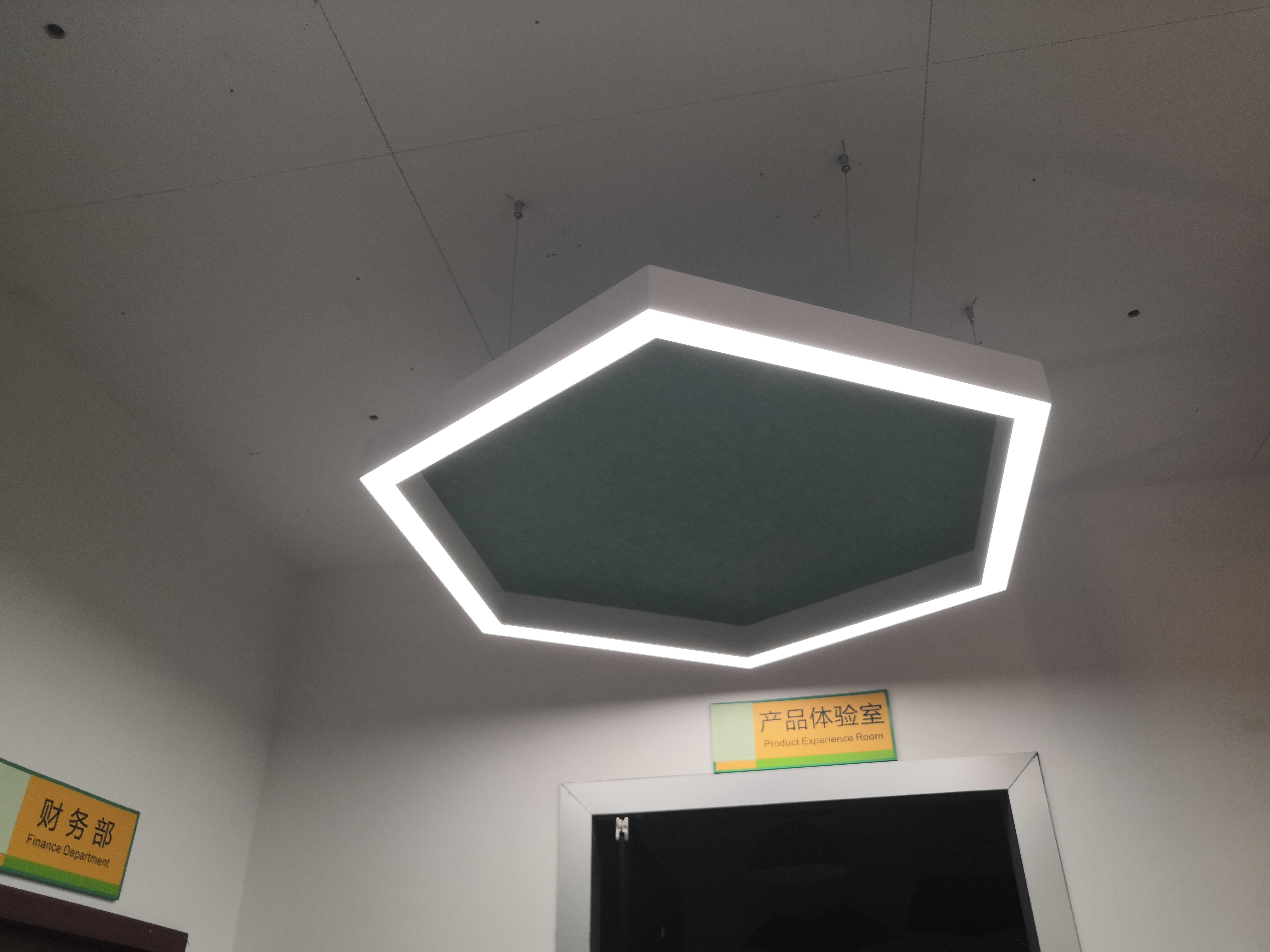

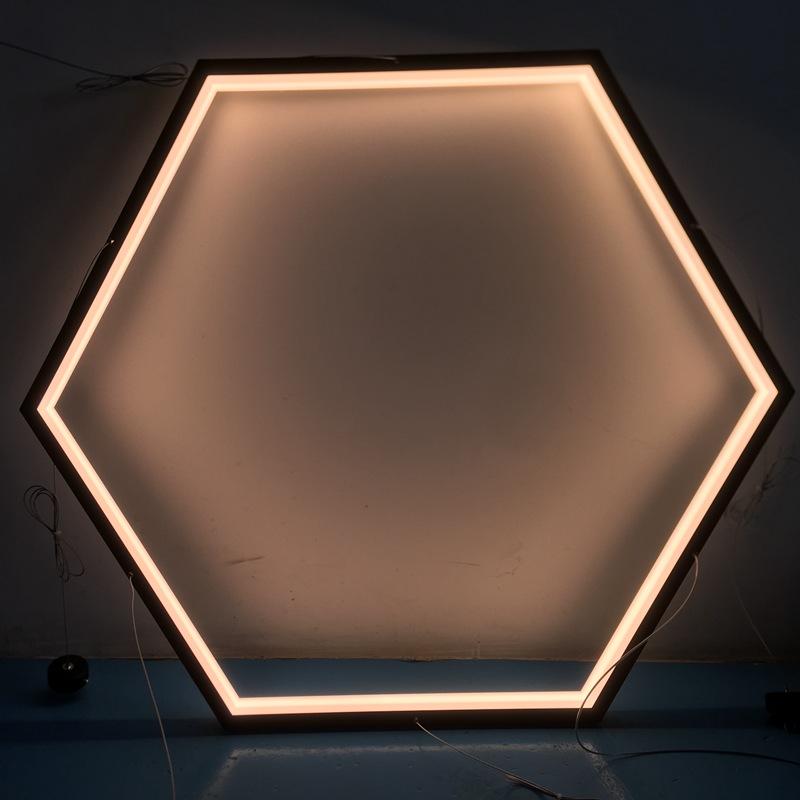

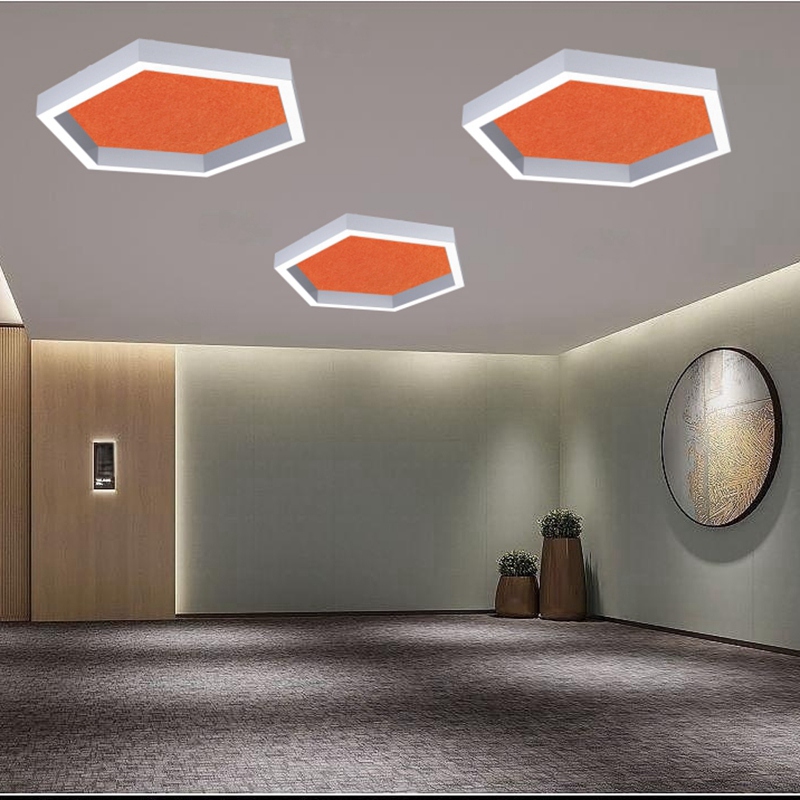

Hexagon Frame Light Pendant Acoustic Architectural Lighting LL0187SAC

The whole frame light is a perfect unit with seamless connection. Lit corners, shadowless LED lighting provides excellent general lighting. The pendant acoustic light is with different sizes and 36 felt colors for selection to suit your project vibe.
It not only lights up a space, but also provides highly effective noise absorption, which is good fit for conference room, library, school etc!
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0187SAC

Diameter(INCH): L9, 12, 18, 24

Diameter(MM): L240, 300, 450, 600

CCT: 3000K/3500K/4000K

Efficacy: 105lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V dimmable

Driver: CUPOWER or equivalent

LED: Samsung or equivalent

Material: Alu+PC+9mm polyester fiber

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant, Surface mounted

Package: PE Foam with master carton

Features


 Flexible MOQ.

 5 years warranty.

 Available in 4 sizes.

 Quite nice craftsmanship.

 No dark area, soft and even light distribution.

 3" Fixture Thickness (Pendant), 3.4" Fixture Thickness (Surface).

 Efficiency: 105lm/w.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.

 Operation Voltage: AC120-277V, 0-10v dimming and non-dimmable for optional


Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI
CCT
(K)
PF
Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0187SAC-25W 25W

480*416*75

(L240)/

18.9*16.4*3.0

(L9.4)

AC220-240V

AC120-277V

≧90
3000K/

3500K/

4000K

≧0.9 105lm/w

White/

Black

120 5ft (1.5m) aircraft cables&power cables going to ceiling straight Alu+PC+9mm polyester fiber
LL0187SAC-40W 40W

600*520*75

(L300)/

23.6*20.5*3.0

(L11.8)

LL0187SAC-90W 90W

900*780*75

(L450)/

35.4*30.7*3.0

(L17.7)

LL0187SAC-180W 180W

1200*1040*75

(L600)/

47.2*40.9*3.0

(L23.6)



Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files
