Led Acoustic Ring Light Pendant Decorative Light

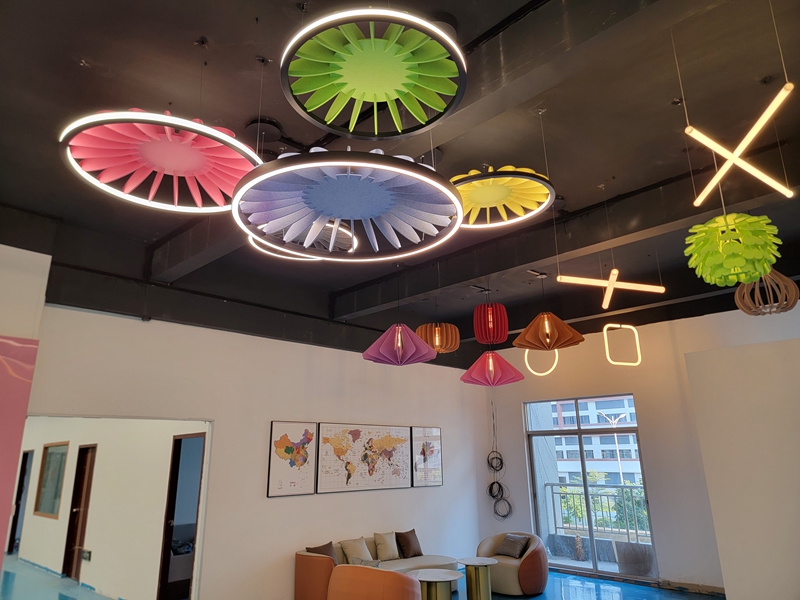

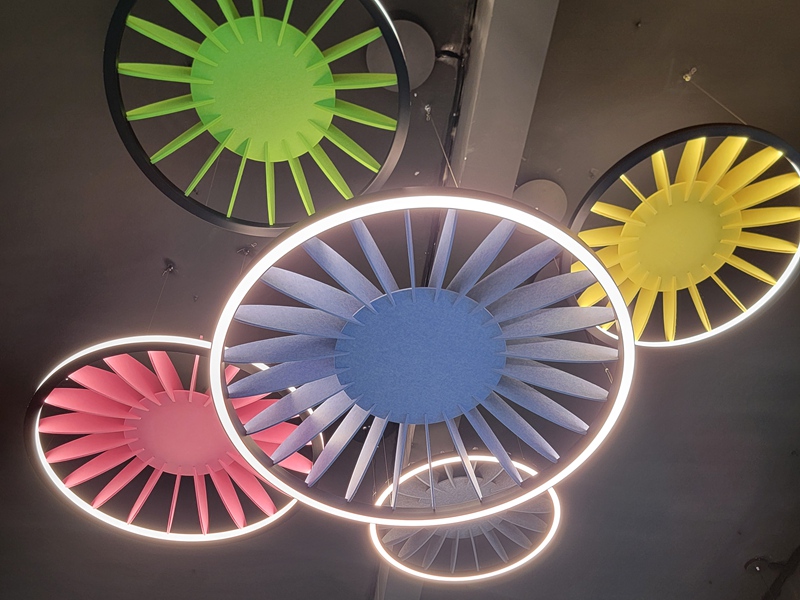

The Acoustic Ring Light is isa versatile acoustic lighting solution. This family is available in sizes from 2ft(600mm) to 5ft(1500mm). It comes with lighting distribution facing inside. Also, it works well with acoustic fabric which not only lights up the space but also helps reduce noise in the space. This is a perfect choice for applications like conference room, hotel, school, library etc.
Standard Finish:
Customized Finish:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Model: LL0113S/ LL0115UDS/ LL0125S/ LL0126S

Diameter(inch): D23.6"/D35.4"/D47.2"/D59.1"

Diameter(MM): 600mm, 900mm, 1200mm, 1500mm

CCT: 3000K/3500K/4000K

Efficacy: 70lm/w

PF: ≧0.9

CRI: ≧80

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC, polyester fiber

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant

Package: PE Foam with master carton


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized

 Quite nice craftsmanship.

 No dark area, soft and even light distribution.

 Acoustic version with 38 acoustic felt colors for option.

 Inner, outer emmiting versions are available.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.

 For pendant ring light, size D5ft(D1500mm) and below D5ft(D1500mm), suspended with central canopy; for size above D5ft(D1500mm), suspended to ceiling straight.

Other Products In The Same Family

Model No. Dimension Dimension code Direct Lumen/Watt Indirect Lumen/Watt
LL0113S-40W-ACFL 23.6"(600mm) 5.2"(132mm) D24 2800/40W /
LL0113S-50W-ACFL 35.4"(900mm) 7.6"(192mm) D35 3500/50W /
LL0113S-80W-ACFL 47.2"(1200mm) 9.8"(247mm) D47 5600/80W /
LL0113S-100W-ACFL 59.1"(1500mm) 11.9"(303mm) D59 7000/100W /
LL0115UDS-65W-ACFL 23.6"(600mm) 6.4"(162mm) D24 2800/40W 1750/25W
LL0115UDS-80W-ACFL 35.4"(900mm) 8.8"(222mm) D35 3500/50W 2100/30W
LL0115UDS-120W-ACFL 47.2"(1200mm) 11.0"(277mm) D47 5600/80W 2800/40W
LL0115UDS-135W-ACFL 59.1"(1500mm) 13.1"(333mm) D59 6300/90W 3150/45W
LL0125S-32W-ACFL 23.6"(600mm) 4.9"(126mm) D24 22400/32W /
LL0125S-40W-ACFL 35.4"(900mm) 7.3"(186mm) D35 2800/40W /
LL0125S-70W-ACFL 47.2"(1200mm) 9.5"(241mm) D47 4900/70W /
LL0125S-80W-ACFL 59.1"(1500mm) 11.7"(297mm) D59 5600/80W /
LL0126S-32W-ACFL 23.6"(600mm) 4.9"(126mm) D24 22400/32W /
LL0126S-40W-ACFL 35.4"(900mm) 7.3"(186mm) D35 2800/40W /
LL0126S-70W-ACFL 47.2"(1200mm) 9.5"(241mm) D47 4900/70W /
LL0126S-80W-ACFL 59.1"(1500mm) 11.7"(297mm) D59 5600/80W /


Data Sheet

Data Sheet





IES Files

IES Files
