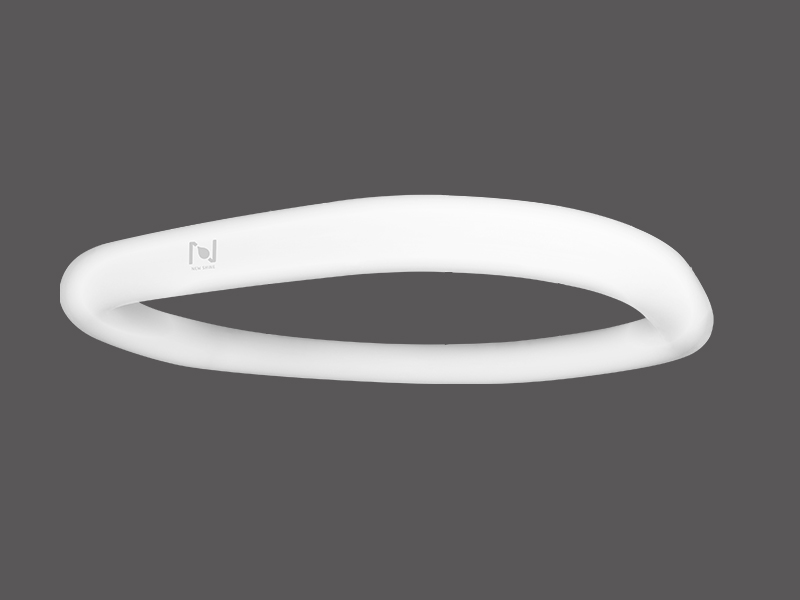

LL0177M
Specification
Model: LL0177M
Diameter(INCH): D23.6", D47.2"
Diameter(MM): D600mm, D1200mm
CCT: 3000K/3500K/4000K
Efficacy: 70lm/w
PF: ≧0.9
CRI: ≧90
Dimming: non dimmable
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: silicone
Input Voltage: AC220-240V / AC120-277V
LED Lifetime: >50,000H
Mounting: Pendant, Surface mounted
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ 5 years warranty.
◆ Available in 4 standard sizes, can be customized per request.
◆ Quite nice craftsmanship.
◆ No dark area, soft and even light distribution
◆ With the Dia50mm(2.0"), pendant and surface mounted for optional.
◆ 360deg full light emitting.
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
◆ Operation Voltage: AC120-277V, 0-10v dimming and non-dimmable for optional.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0177M--6060 | 40W | D600*600*50 / 23.6*23.6*2.0 | AC220-240V / AC120-277V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 70lm/w | White | 360 | Surface Mounted | silicone |
| LL0177M--60120 | 60W | D600*1200*50 / 23.6*47.2*2.0 | |||||||||
| LL0177M-120120 | 80W | D1200*1200*50 / 47.2*47.2*2.0 | |||||||||
| LL0177M-120240 | 120W | D1200*2400*50 / 47.2*94.5*2.0 |
