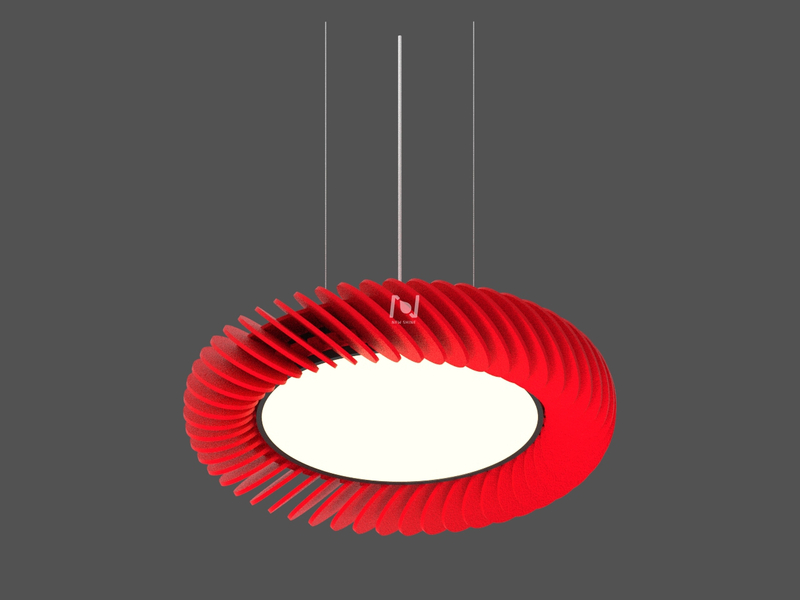

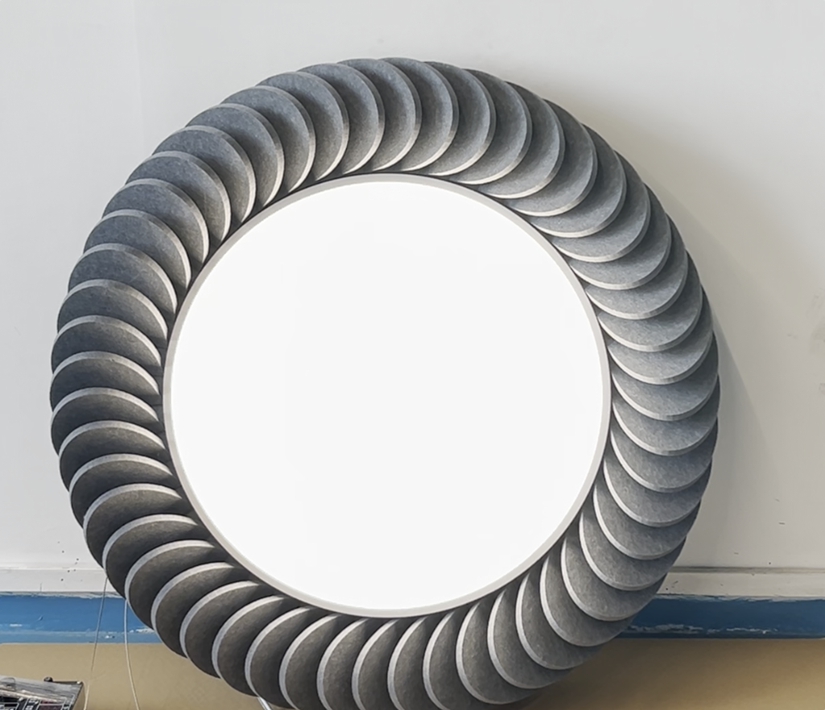

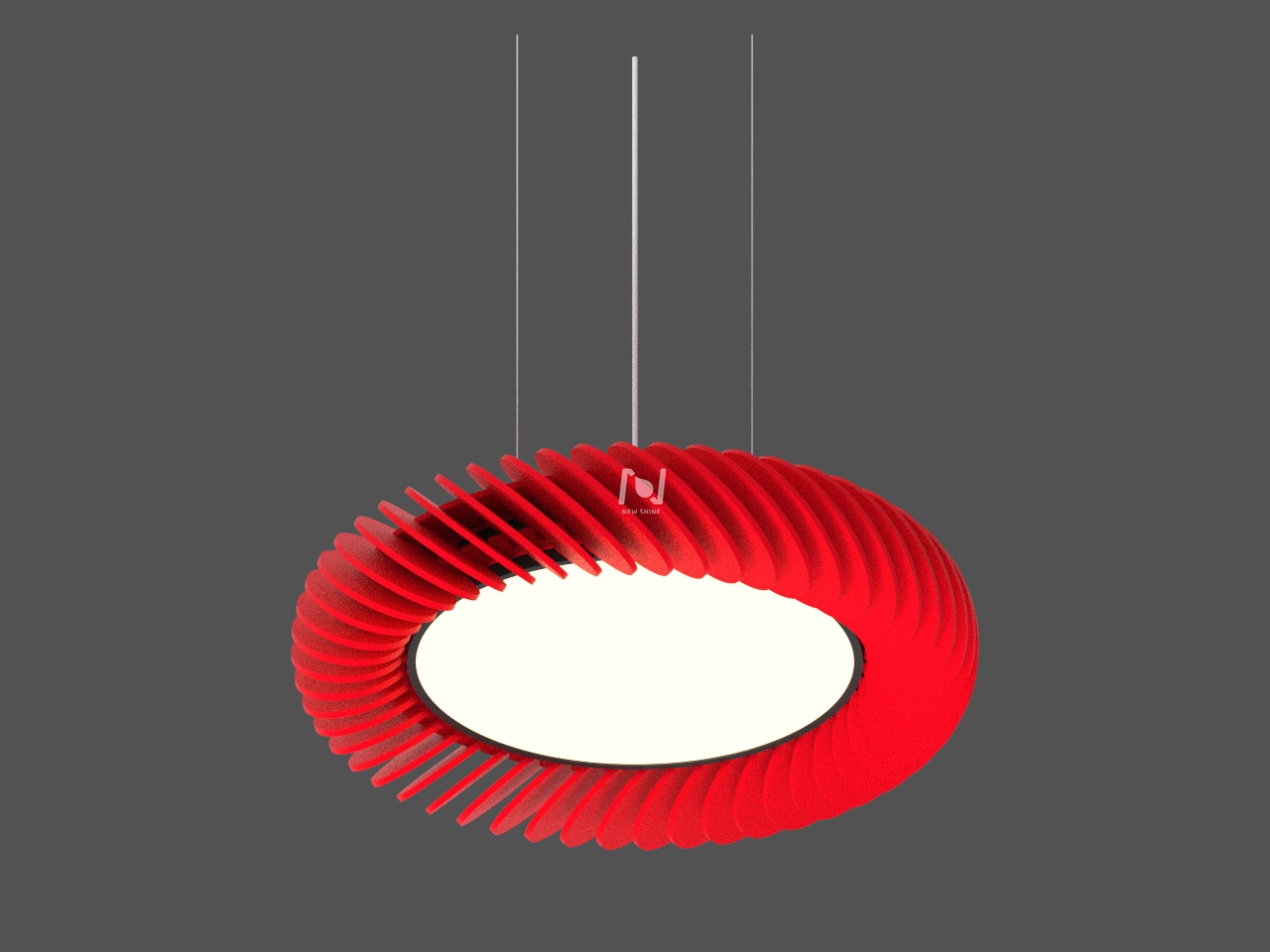

NEST Acoustic LED Round Pendant Sound Absorbing Light LL0112S-40W-AC-SR

Introducing a luminaire with particular shape and proportions, the round for general lighting applications. Available in multiple sizes, mountings, and light distributions to fit the scale, proportions and light output requirements of the project. Combining the elements of color, shape, and sound. ROUND acoustic is an extremely versatile lighting tool for a range of projects. Available in 4 sizes, adopt 0.35"(9mm) ployster fiber in a range of color options. With great acoustic performance, has sound absorbing, non-toxic, non-allergeic and non-irritant characteristics.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0112S-40W-AC-SR

Diameter(inch): D36/D47/D59/D71"

Diameter(MM): D905/D1205/1505/D1805mm

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC, polyester fiber

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

 Direct illuminating or Direct&indirect illuminating for option.

 Homogeneous lighting distribution, reduce noise in the space, offering a better acoustic environment.

 Acoustic version with 36 acoustic felt colors for option.

 Good for use in hotel, office, public building, shop, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.


Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0112S-40W-AC-SR-D35H7 40W D905*183 / D35.6*7.2

AC120-277V

   /

AC220-240

≧90 3000K/
3500K/
4000K
≧0.9 85lm/w profile in white please advise acoustic color 120 5ft (1.5m) aircraft cable&power cables going to ceiling straight Alu+PC+
polyester fiber
LL0112S-90W-AC--SR-D47H7 90W D1205*183 / D47.4*7.2
LL0112S-180W-AC--SR-D59H7 180W D1505*183 / D59.3*7.2
LL0112S-220W-AC--SR-D71H7 220W D1805*183 / D71*7.2




Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files
