Specification

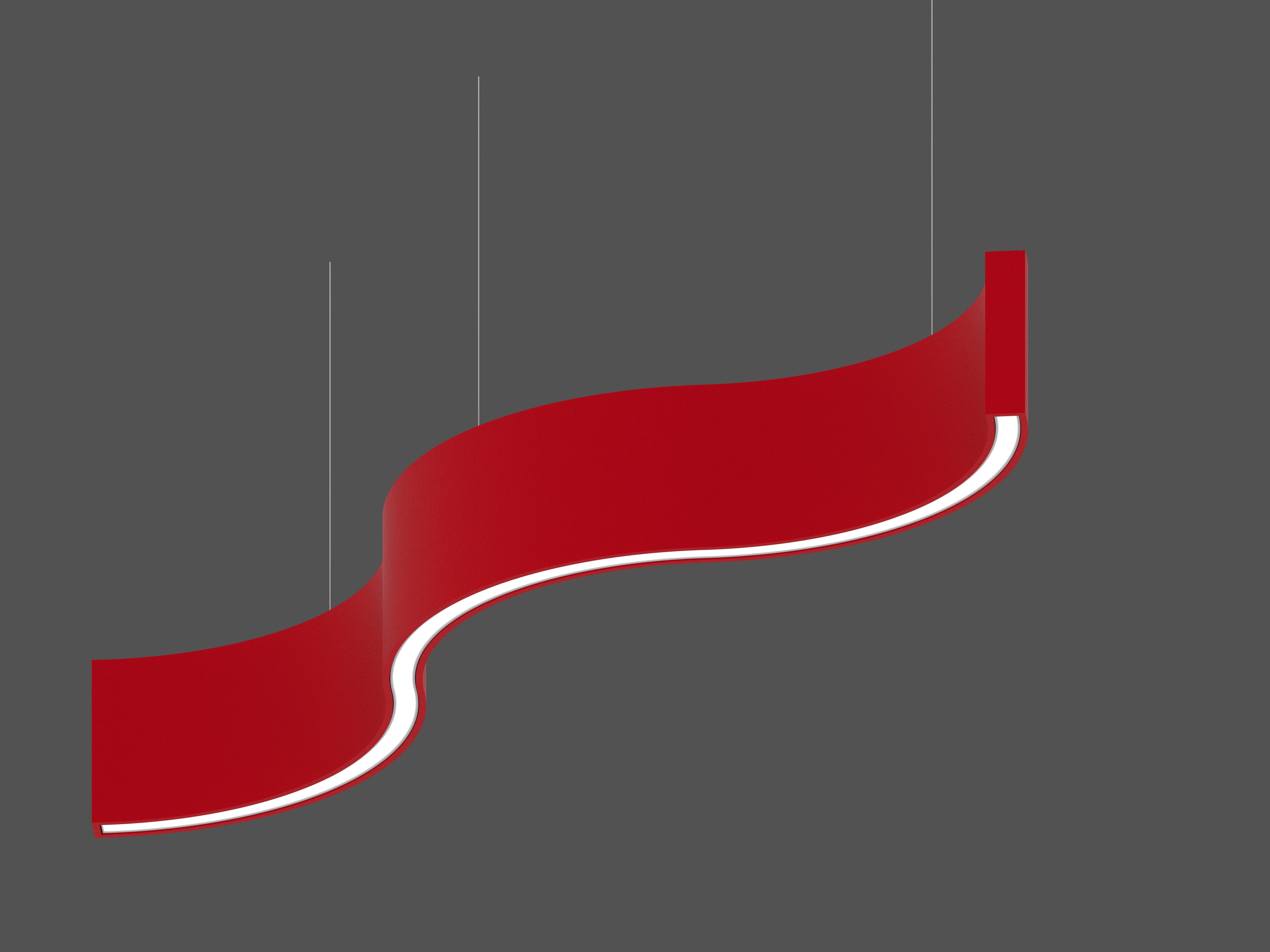

Model: LL0189S-CUR
Height (INCH): 7.4", 11.4", 15.3"
Height (MM): 188mm, 288mm, 388mm
CCT: 3000K/3500K/4000K
Efficacy: 105lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: Cupower or equivalent
LED: Osram or equivalent
Material: Aluminum, PC, Polyester Fiber
Input Voltage: AC120-277V/ AC220-240V
LED Lifetime: >50,000H
Mounting: Pendant
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ Acoustic version with 36 acoustic felt colors for option.
◆ Quite nice craftsmanship.
◆ No dark area, soft and even light distribution.
◆ Available in direct or direct and indirect light distribution
◆ Available in acoustic with light or acoustic only (no light)
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(V) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0189H1S-1200 | 40W | W52*H188*L1200/ 2.0*7.4*47.2 | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≥0.9 | 105LM/W | Profile in silver/white/black, please advise acoustic color | 120 | 5ft (1.5m) aircraft cables&power cables going to ceiling straight | Alu+PC + polyester fiber |
| LL0189H2S-1200 | 40W | W52*H288*L1200/ 2.0*11.4*47.2 | |||||||||
| LL0189H3S-1200 | 40W | W52*H388*L1200/ 2.0*15.3*47.2 |
