Specification

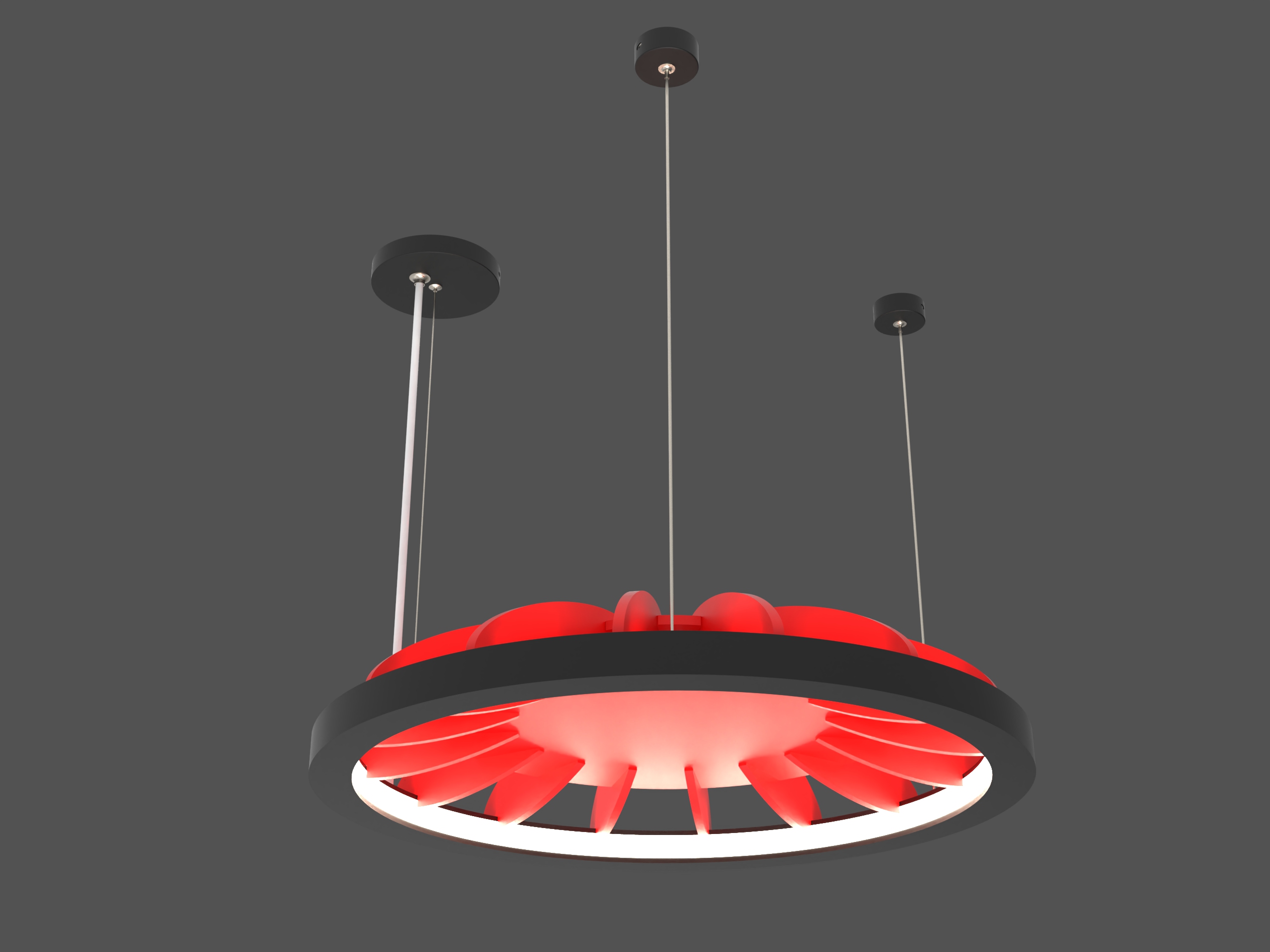

Model: LL0125S ACFL
Diameter(inch): D23.6"/D35.4"/D47.2"/D59.1"
Diameter(MM): 600mm, 900mm, 1200mm, 1500mm
CCT: 3000K/3500K/4000K
Efficacy: 70lm/w
PF: ≧0.9
CRI: ≧80 or ≧90
Dimming: 0-10V
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: Aluminum, PC, polyester fiber
Input Voltage: AC220-240V / AC120-277V
LED Lifetime: >50,000H
Mounting: Pendant
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 2 color finishes(black, white), can be customized
◆ Quite nice craftsmanship.
◆ No dark area, soft and even light distribution.
◆ Acoustic version with 36 acoustic felt colors for option.
◆ Direct, direct indirect, inner, outer emmiting versions are available.
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
◆ For pendant ring light, size D5ft(D1500mm) and below D5ft(D1500mm), suspended with central canopy; for size above D5ft(D1500mm), suspended to ceiling straight.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0125S-32W-ACFL | 32W | D600*35*32 / 23.6*1.4*1.3 | AC120-277V/ AC220-240V | ≧80 | 3000K/ 3500K/ 4000K | ≧0.9 | 70lm/w | White/ black | 300 | central canopy suspended with 5ft (1.5m) aircraft cable&power cables; | Alu+PC+ polyester fiber |
| LL0125S-40W-ACFL | 40W | D900*35*32 / 35.4*1.4*1.3 | |||||||||
| LL0125S-70W-ACFL | 70W | D1200*35*32 / 47.2*1.4*1.3 | |||||||||
| LL0125S-80W-ACFL | 80W | D1500*35*32 / 59*1.4*1.3 |
Download
 |
|
|
|
Client Feedback:
"You were perfect in terms of lead time and product quality--no complaints at all. As long as we can maintain this standard, everything will be fine."
