Up Down Pendant Light Stem Mounted Rainbow Light LL0118UDST

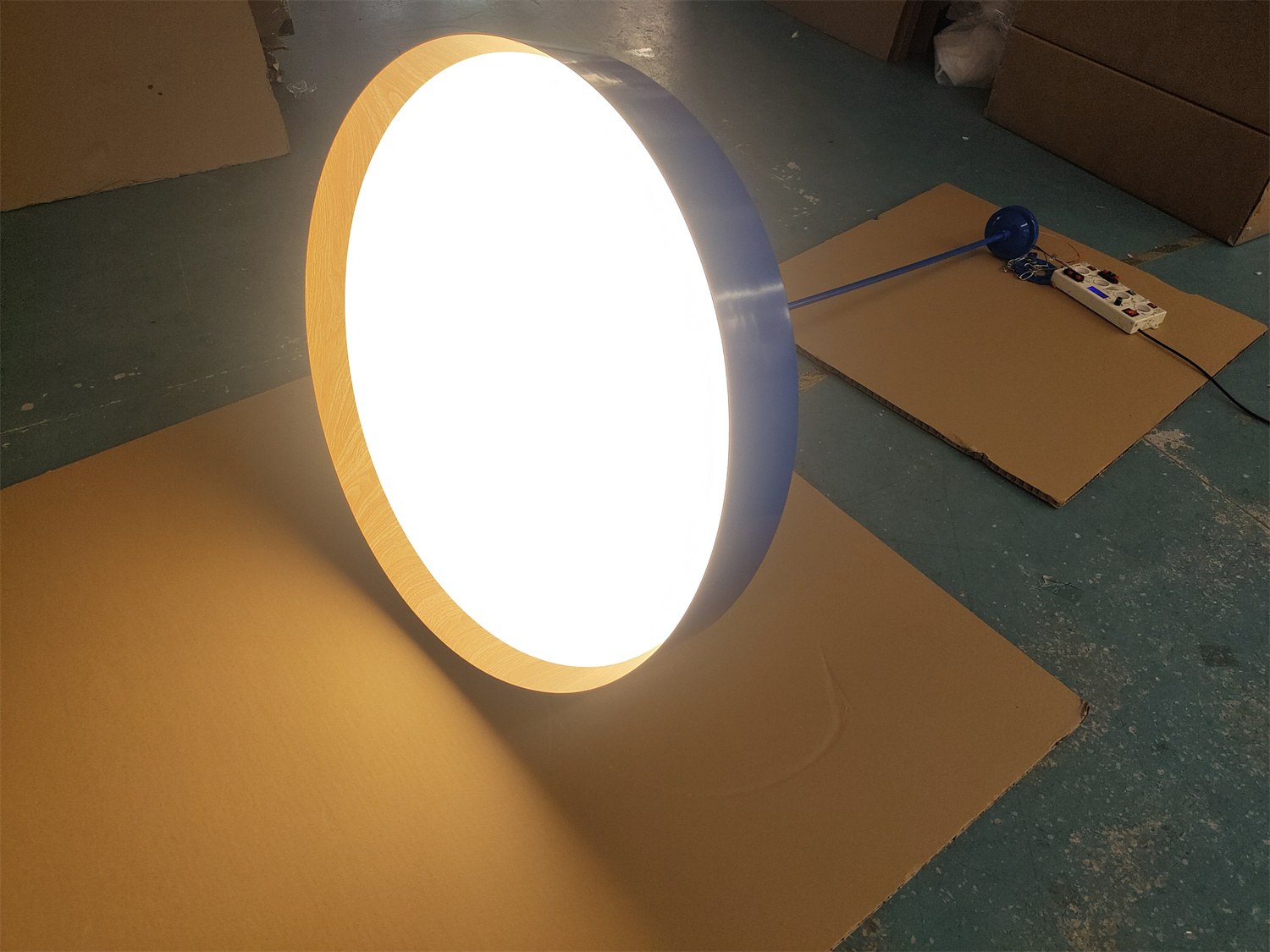

Combining the elements of color, shape and light, rainbow family is an extremely versatile lighting tool for a range of project. Available in three sizes from 2ft to 4ft diameter, a beveled regress from the outer profile reveals an evenly illuminated satin lens. Inside bevel and outside frame is available in different color combinations.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0118UDST

Diameter(inch): D23.6/35.4/47.2"

Diameter(MM): 600/900/1200mm

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized

 Quite nice craftsmanship, a beveled regress from the outer profile reveals an evenly illuminated satin lens.

 Different colors for the inside bevel and outside frame to match the vibe of your application.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.


Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material

LL0118UDST-

60W

(up 20w, down 40w)

60W D600*175 / D23.6*6.9

AC120-277V

AC220-240V/

90 3000K/
3500K/
4000K
0.9 85lm/w white/black 120*2 4FT STEM MOUNTED Alu+PC

LL0118UDST-120W

(up 48w, down 72w)

120W D900*175 / D35.4*6.9

LL0118UDST-220W

(up 88w, down 132w)

220W D1200*175 / D47.2*6.9
