Specification
Model: LL0112ST-PRO
Diameter(FT): D11.8/15.7/18.9/23.6"
Diameter(MM): 300/400/480/600mm
CCT: 3000K/3500K/4000K
Efficacy: 85lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: Aluminum, PC
Input Voltage: AC220-240V / AC120-277V
LED Lifetime: >50,000H

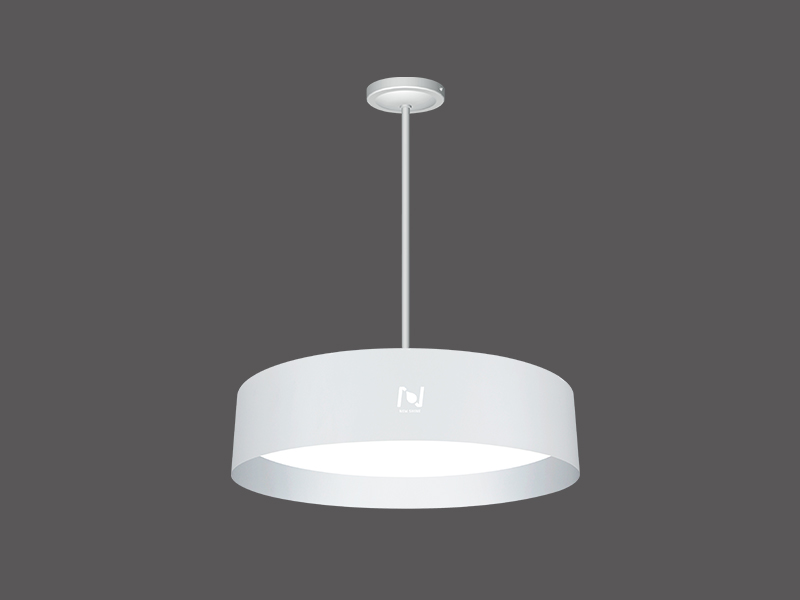

Mounting: Stem Pendant
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 2 color finishes(black, white), can be customized
◆ Quite nice craftsmanship.
◆ Even lighting distribution, optional soft uplight can shine the ceiling pattern and add atmosphere.
◆ Knife edge design provides a modern aesthetic

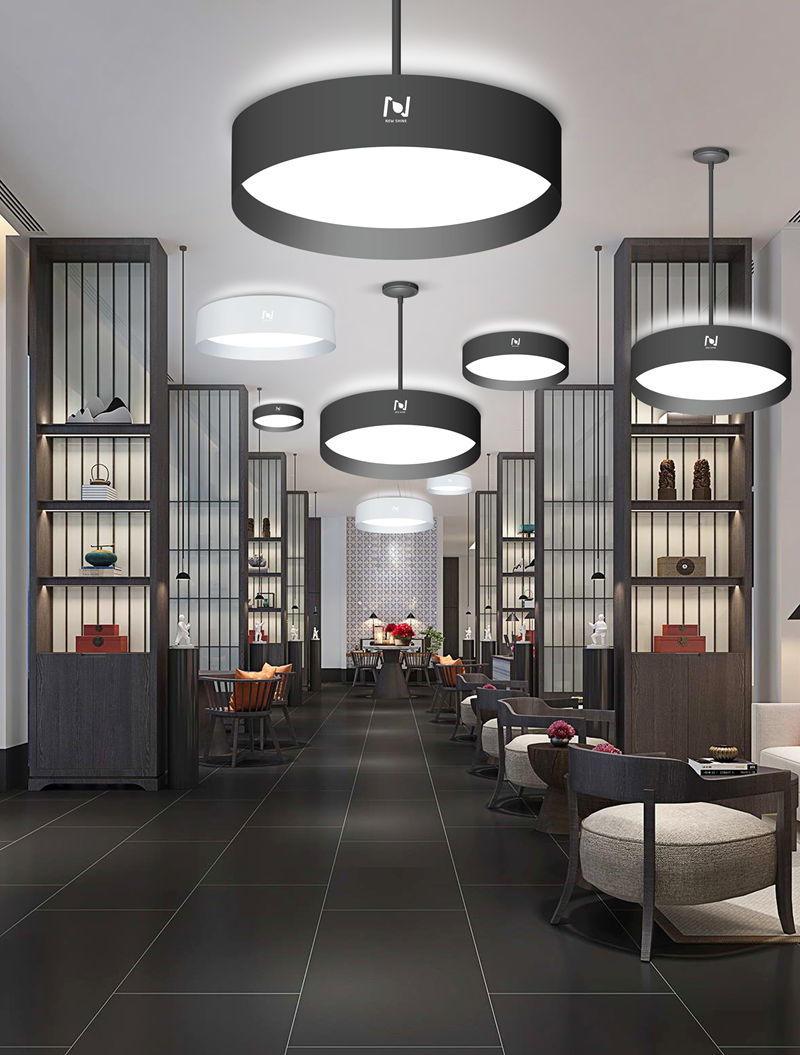

◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0112ST-15W-PRO | 15W | D300*100 / D11.8*4.0 | AC120-277V/ AC220-240V | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 85lm/w | White/ black | 120 | 4ft(1.2m) stem mounted | Alu+PC |
| LL0112ST-20W-PRO | 20W | D400*100 / D15.7*4.0 | |||||||||
| LL0112ST-25W-PRO | 25W | D480*100 / D18.9*4.0 | |||||||||
| LL0112ST-40W-PRO | 40W | D600*100 / D23.6*4.0 |
