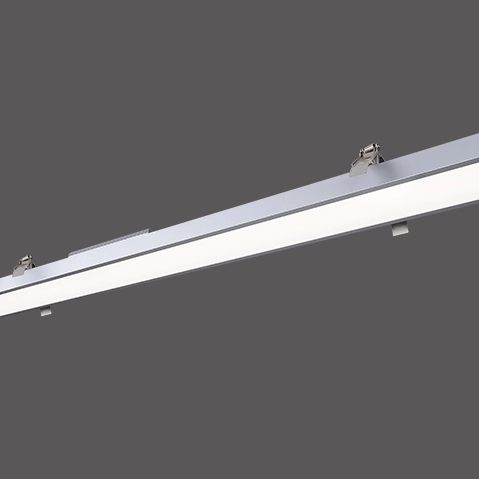

Linear Recessed Led Ceiling Light Fixture LL0105R

Linear lighting series with seamless connection to join different lengths, no LED hot spots, no dark corners. Easily blend into different architectural design, suitable for wide applications. Suspended, surface mounted, recessed and wall mounted are available. Flexible shapes and sizes with direct, direct and indirect illumination, available in acoustic or wood texture styles.

There are many possibilities to play on our linear light fixtures, can be combined into different shapes to match the architecture style. The whole light is a perfect unit with seamless connection.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0105R

Length (INCH): 47.2", 59.1", 94.5"

Length (MM): 1200mm, 1500mm, 2400mm

CCT: 3000K/3500K/4000K

Efficacy: 105lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: Cupower or equivalent

LED: Osram or equivalent

Material: Aluminum, PC

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Recessed, Pendant, Surface mounted, Recessed,

Wall surface mounted

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 3 color finishes(black, white, silver), can be customized.

 Quite nice craftsmanship, seamless connection.

 No dark area, soft and even light distribution.

 Direct, direct/indirect emmiting versions are available.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0105R-1200 25W 50*30*1200/ 2.0*1.2*47.2 AC120-277V/
AC220-240V
≧90 3000K/
3500K/
4000K
≧0.9 105LM/W Silver/ White/
Black
120 Recessed Alu+PC
LL0105R-1500 36W 50*30*1500/ 2.0*1.2*59.1
LL0105R-2400 50W 50*30*2400/2.0*1.2*94.5



Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files
