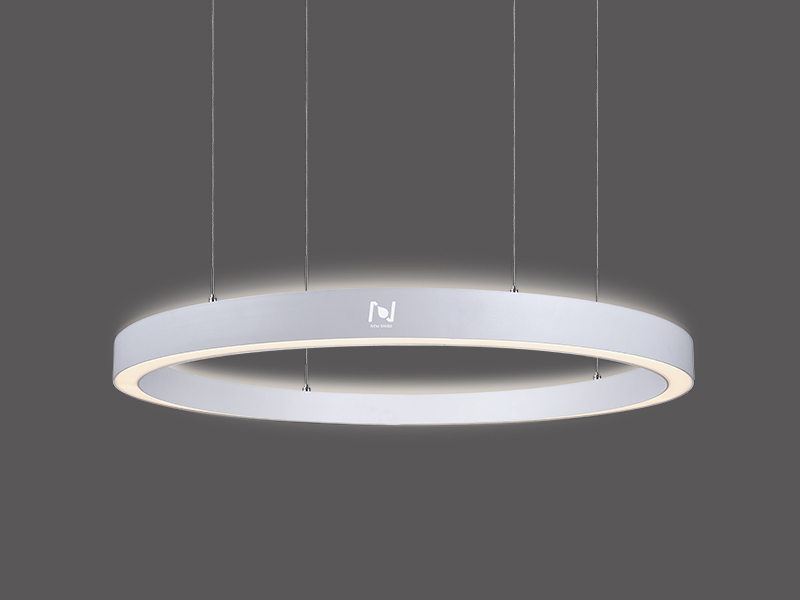

Factory light architectural lighting design manufacturers LED circle lighting LL0115UDS-300W
Product specification:
Power | 300W |
Input Voltage | AC220-240V/ AC120V-AC277V |
CRI(Ra) | ≥90 |
CCT(K) | 3000/3500/4000 |
PF | ≥0.9 |
Efficiency | 85lm/w |
Material | Aluminum/ PC |
Product size | D3000*42*68mm/ D118.1*1.7*2.7" |
Other products in the same family:
| Model No. | Power | Size (mm/inch) | Input Voltage (v) | CRI | CCT (K) | PF | Efficacy (lm/w) | Body Color | Beam (degree) | Installation | Material |
| LL0115UDS-65W (up 25w, down 40w) | 65W | D600*42*68/ D23.6*1.7*2.7 | AC120-277V/ AC220-240VAC | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 85lm/w | White/ Black | 120*2 | Central canopy suspended with 5ft (1.5m) aircraft cables&power cables | Alu+PC |
| LL0115UDS-80W (up 24w, down 56w) | 80W | D900*42*68/ D35.4*1.7*2.7 | |||||||||
| LL0115UDS-120W (up 36w, down 84w) | 120W | D1200*42*68/ D47.2*1.7*2.7 | |||||||||
| LL0115UDS-135W (up 45w, down 90w) | 135W | D1500*42*68/ D59.1*1.7*2.7 | |||||||||
| LL0115UDS-150W (up 45w, down 105w) | 150W | D2000*42*68/ D78.7*1.7*2.7 | ≧90 | 3000K/ 3500K/ 4000K | ≧0.9 | 85lm/w | White/ Black | 120*2 | 5ft (1.5m) aircraft cables&power cables going to ceiling straight | Alu+PC | |
| LL0115UDS-200W (up 50w, down 150w) | 200W | D2500*42*68/ D98.4*1.7*2.7 | |||||||||
| LL0115UDS-300W (up 90w, down 210w) | 300W | D3000*42*68/ D118.1*1.7*2.7 | |||||||||
| LL0115UDS-400W (up 100w, down 300w) | 400W | D4000*42*68/ D157.5*1.7*2.7 | |||||||||
| LL0115UDS-480W (up 144w, down 336w) | 480W | D5000*42*68/ D196.9*1.7*2.7 |
Product specialties:
1. It’s 65W(600mm), 80W(900mm), 120W(1200mm), 135W(1500mm), 150W(2000mm), 300W(3000mm),
480W(5000mm) design. Color can be white and black. Special color can be discussed.
2. Good for use in hotel, reception room, shopping mall, etc.
3. 0-10V or dali dimming is available.
4. Warranty is 5 years!
Wide Applications in hotel, reception room, gym, restaurant, shopping mall, etc.
Welcome to know about us:
1. New Shine Lighting focus on LED architectural lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!
2. Solid project experience for Europe, North America, Southeast Asia and Middle East market!
3. Quick architectural lighting solutions provider, quick quotation can be provided within an hour and quick delivery can be provided in 2-4 weeks!
Client Feedack:
"I am puttinq the samples in the job folder.
Samples look great.
Fantastic job."
