LED Acoustic Circular Ring Lights Pendant Ceiling Lighting Fixtures LL0113SAC-PRO-DM

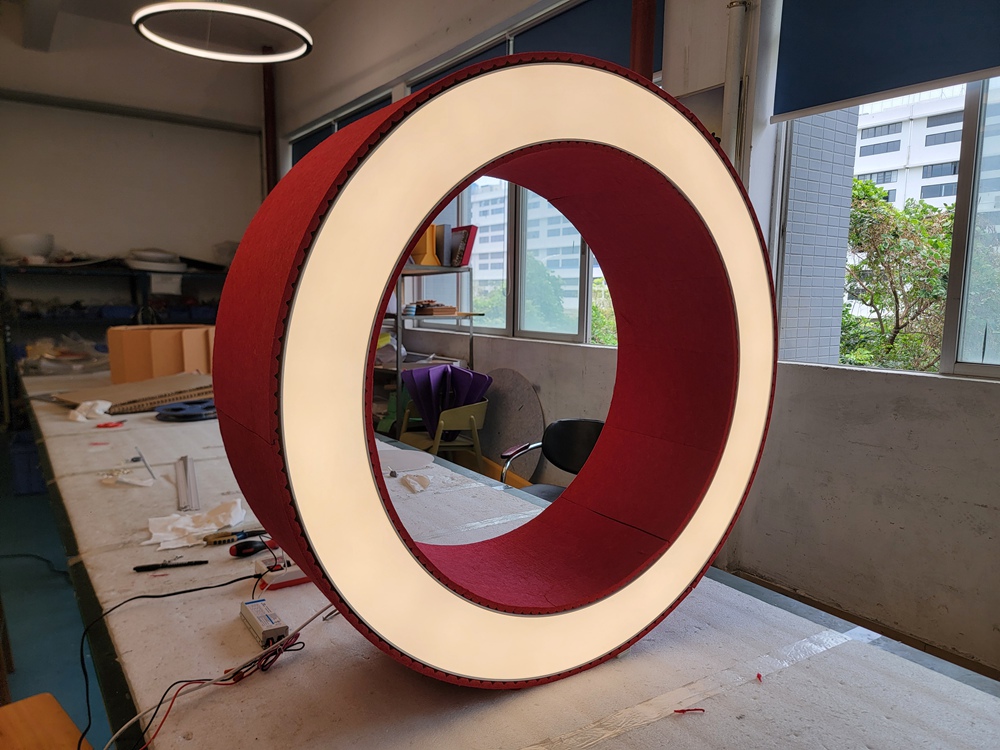

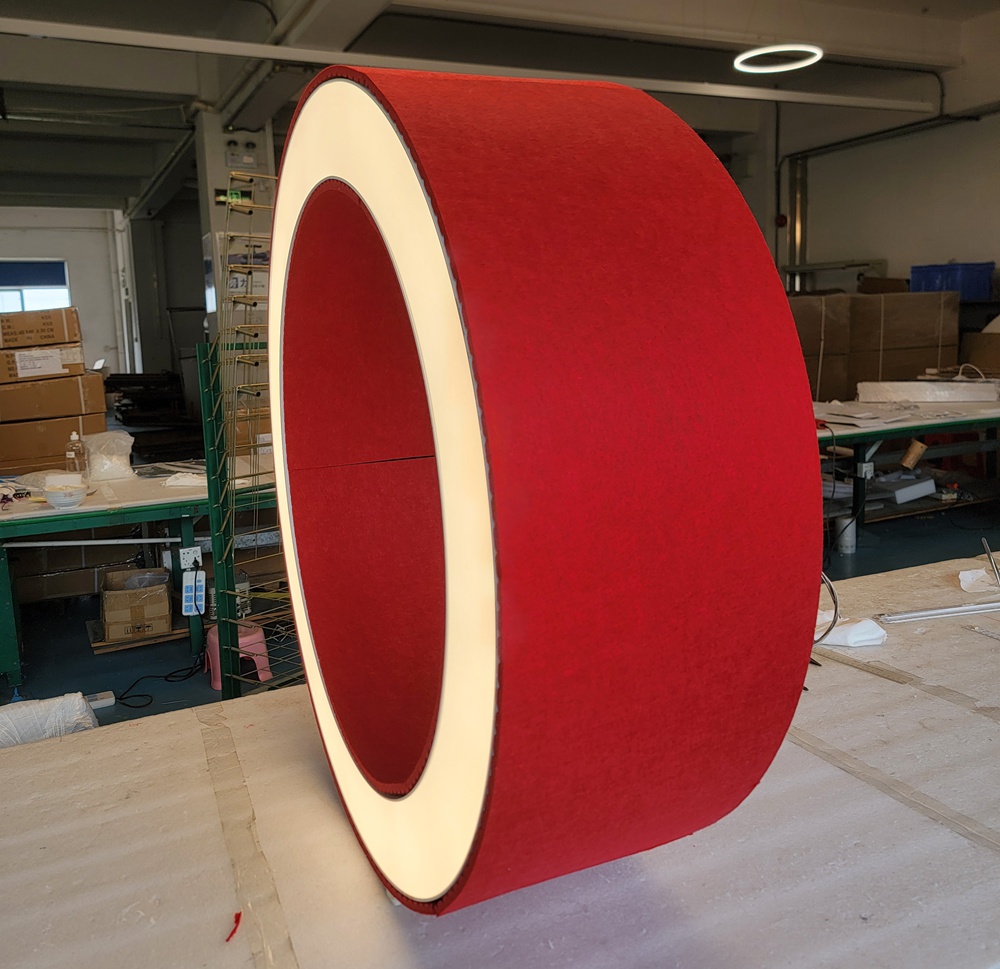

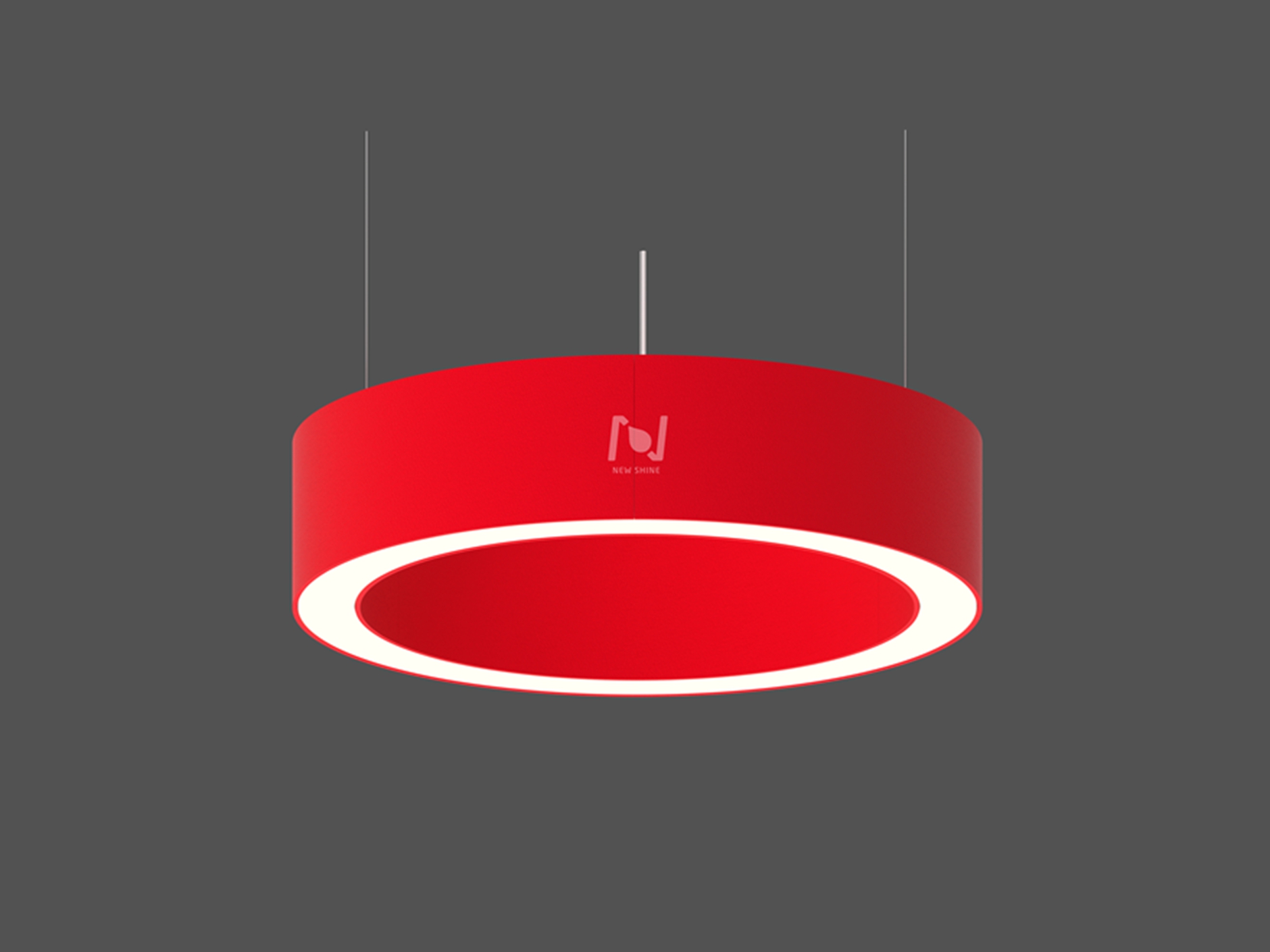

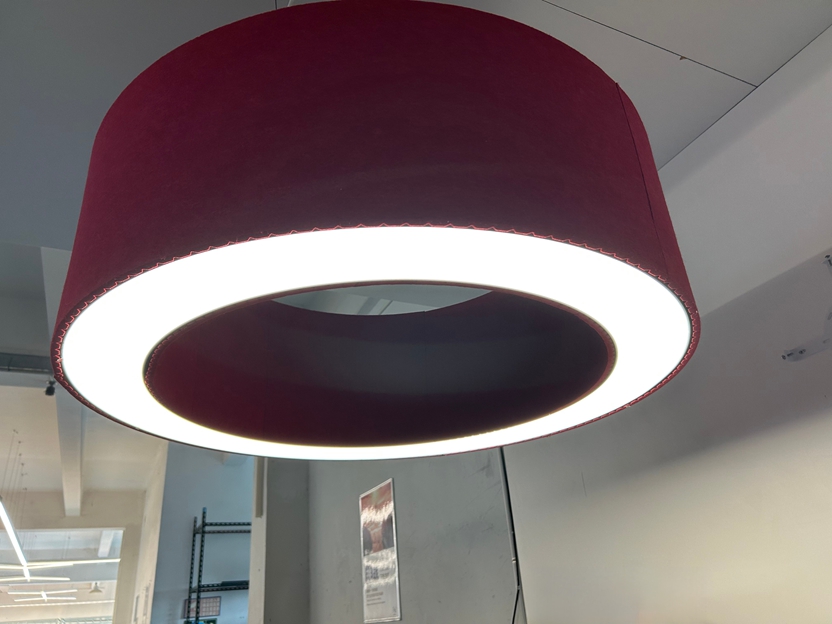

ACOUSTIC RING DRUM LIGHT is a versatile architectural lighting solution, pendant mount, with direct illumination. From 2ft dia to 16.5ft dia, the Ring Light stands out among the rest for range of features and options. direct suspension . There 3 width diffusor for option: 80/100/120mm.
The diameter is bigger than 5ft, delivery sections and with joiner. The standard safe cable lenght is 5ft(1.5m), can be customized.
Mark:
ETL certification
TW Tunable White
Damp Location
warranty 5 years
Flicker free
poe
Standard Finish:
Matt Black
Matt White
Customized Finish:
NSAC087
NSAC-089
NSAC-086
NSAC-085
NSAC-082
NSAC-081
NSAC-084
NSAC-083
NSAC-080
NSAC-088
QL0928
QL0503
QL0411
QL0908
CNH285
SKU:
Availability:
Inquire Now

PDF Export
facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button

Specification


Model: LL0113S-PRO-DM

Diameter(INCH): 24, 36, 48, 60, 80, 95, 119, 166, 198

Diameter(MM): 620, 920, 1220, 1520, 2020, 2420, 3020, 4220, 5020

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V dimmable / non-dimmable

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Aluminum, PC, Polyester fiber

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant

Package: PE Foam with master carton

Features


◆ Flexible MOQ.

◆ ETL listed, 5 years warranty.

◆ 2 color finishes(black, white), can be customized.

◆ Quite nice craftsmanship.

◆ No dark area, soft and even light distribution.

◆The diameter size to choose from ranging from 2ft to 16.5ft; 3 width diffusor for option: 4.0"/4.8"/5.5" (100/120/140mm)

◆ 36 acoustic felt colors for option.

◆ Good for use in hotel, office, shopping mall, public building, etc.

◆ The packaging has passed strict tests which is suitable for air shipping.

◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI
CCT
(K)
PF
Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0113S-40W-PRO-DM 40W
D620*100*120

D24.4*4.0*4.8

/

D620*120*120

D24.4*4.8*4.8

/

D620*140*120

D24.4*5.5*4.8

AC220-240V

/

AC120-277V

 ≧90
3000K/

3500K/

4000K

 ≧0.9 85lm/w

profile in white please advise acoustic color

 120
 5ft (1.5m) aircraft cables&power cables going to ceiling straight Alu+PC+Polyester fiber
LL0113S-50W-PRO-DM
50W
D920*100*120

D36.2*4.0*4.8

/

D920*120*120

D36.2*4.8*4.8

/

D920*140*120

D36.2*5.5*4.8
LL0113S-80W-PRO-DM 80W
D1220*100*120

D48*4.0*4.8

/

D1220*120*120

D48*4.8*4.8

/

D1220*140*120

D48*5.5*4.8
LL0113S-100W-PRO-DM 100W
D1520*100*120

D59.8*4.0*4.8

/

D1520*120*120

D59.8*4.8*4.8

/

D1520*140*120

D59.8*5.5*4.8
LL0113S-120W-PRO-DM 120W
D2020*100*120

D79.5*4.0*4.8

/

D2020*120*120

D79.5*4.8*4.8

/

D2020*140*120

D79.5*5.5*4.8
LL0113S-160W-PRO-DM 160W

D2420*100*120

D95.3*4.0*4.8

            /

D2420*120*120

D95.3*4.8*4.8

            /

D2420*140*120

D95.3*5.5*4.8
LL0113S-200W-PRO-DM 200W

D3020*100*120

D118.9*4.0*4.8

          /

D3020*120*120

D118.9*4.8*4.8

          /

D3020*140*120

D118.9*5.5*4.8
LL0113S-300W-PRO-DM 300W

D4220*100*120

D166.1*4.0*4.8

          /

D4220*120*120

D166.1*4.8*4.8

          /

D4220*140*120

D166.1*5.5*4.8
LL0113S-400W-PRO-DM 400W

D5020*100*120

D197.6*4.0*4.8

          /

D5020*120*120

D197.6*4.8*4.8

          /

D5020*140*120

D197.6*5.5*4.8






Download

Data Sheet

Data Sheet

Catalogue

Catalogue

Installation

Installation

IES Files

IES Files





Client Feedback:

"Everything was received, packing was exceptional."








download New Shine Lighting Limited Warranty.pdf

download New Shine Architectural ring lighting brochure 20240313.pdf
