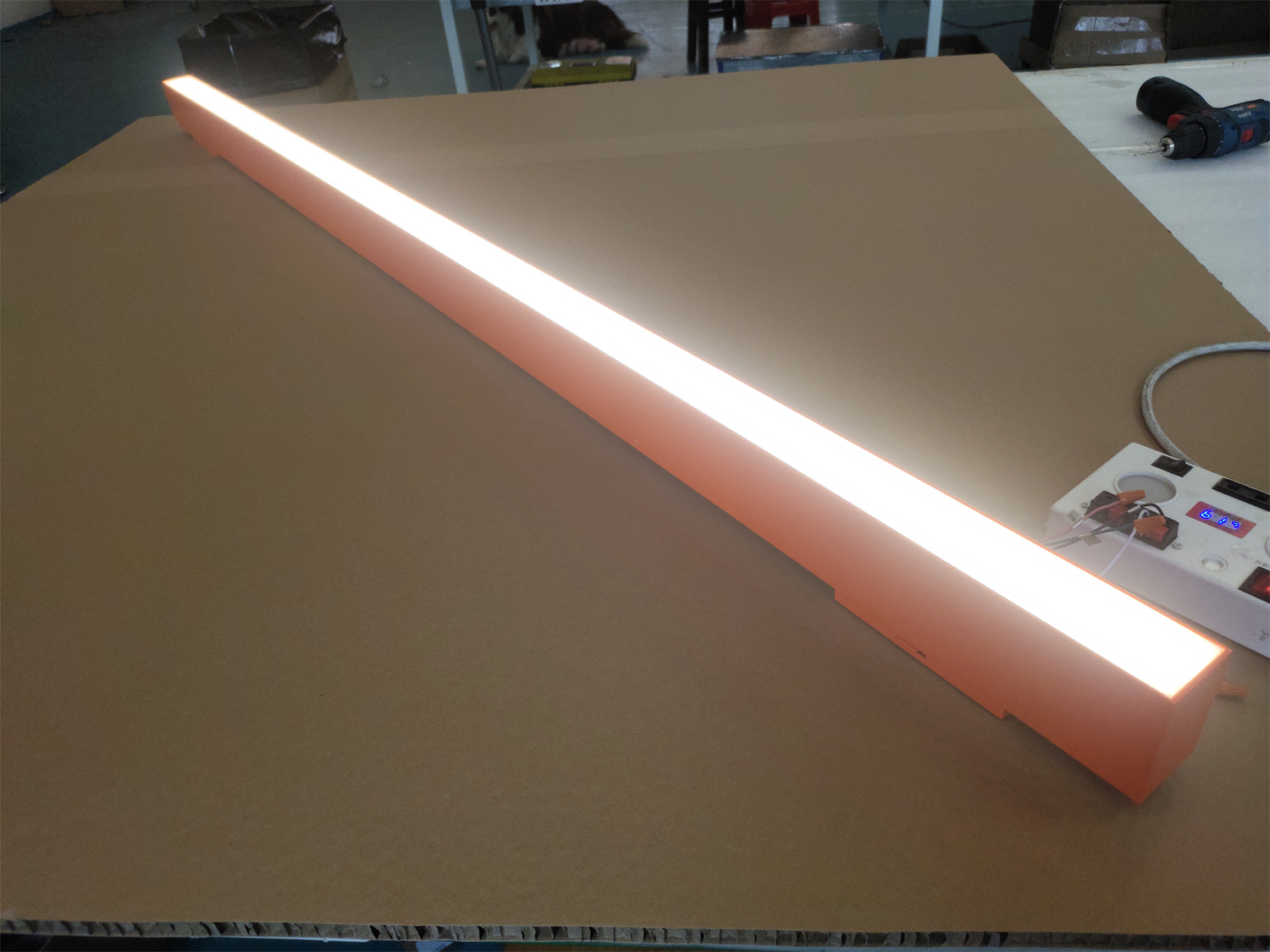

LED Up and down Lighting mounted linear light LL0120W-1200
Product specification:
Power | 50W |
Input Voltage | AC120V-277V |
CRI(Ra) | ≧90 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≥0.9 |
Efficiency | 105lm/w |
Material | Aluminum, pc |
Product size | 50*90*1200mm/1.97*3.54*47.24" |
Other products in the same family:
| Model No. | Power | Size | Input Voltage | CRI | CCT | PF | Efficacy | Body Color | Beam | Installation | Material |
LL0120W-1200 （up 25w, down 25w) | 50W | 50*90*1200mm / 1.97*3.54*47.24” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Mounted | Alu+PC |
LL0120W-1500 (up 35w, down 35w) | 70W | 50*90*1500 mm / 1.97*3.54*59.06” | |||||||||
LL0120W-2400 (up 50w, down 50w) | 100W | 50*90*2400mm / 1.97*3.54*94.49“ | |||||||||
LL0124W-1200 (up 30w, down 30w) | 60W | 65*95*1200mm / 2.56*3.74*47.24” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Mounted | Alu+PC |
LL0124W-1500 (up 50w, down 50w) | 100W | 65*95*1500mm / 2.56*3.74*59.06” | |||||||||
LL0124W-2400 (up 60w, down 60w) | 120W | 65*95*2400mm / 2.56*3.74*94.49” | |||||||||
LL0146W-1200 (up 25w, down 25w) | 50W | 43*90*1200mm / 1.69*3.54*47.24 ” | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 105lm/w | White/ black | 120 | Mounted | Alu+PC |
LL0146W-1500 (up 35w, down 35w) | 70W | 43*90*1500mm / 1.69*3.54*59.06” | |||||||||
LL0146W-2400 (up 50w, down 50w) | 100W | 43*90*2400mm / 1.69*3.54*94.49” |
Special Feastures:
1. Color: White, Black
2. Good for use in hotel, office, gym reception room, classroom, restaurant, etc.
3. Surface mounted available, easy installation and low maintenance.
4. Warranty is 5 years!
Wide Applications in hotels, offices, libraries, museams, etc
Why choose us?
1. New Shine Lighting focus on led architectural lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!
2. All our LED linear and commercial lights are strictly qualified/tested during RD process and before shipment in our test lab. We conduct heat test, high temp test, switch on/off test, current test, long term aging test, weigh test, package drop test, etc according to the application.
3. Quick solution provider, quick quotation can be done within an hour and quick delivery can be done within 2-3 weeks.
Client Feedback:
"Your lights are doing great in the show room. Customers love them."
