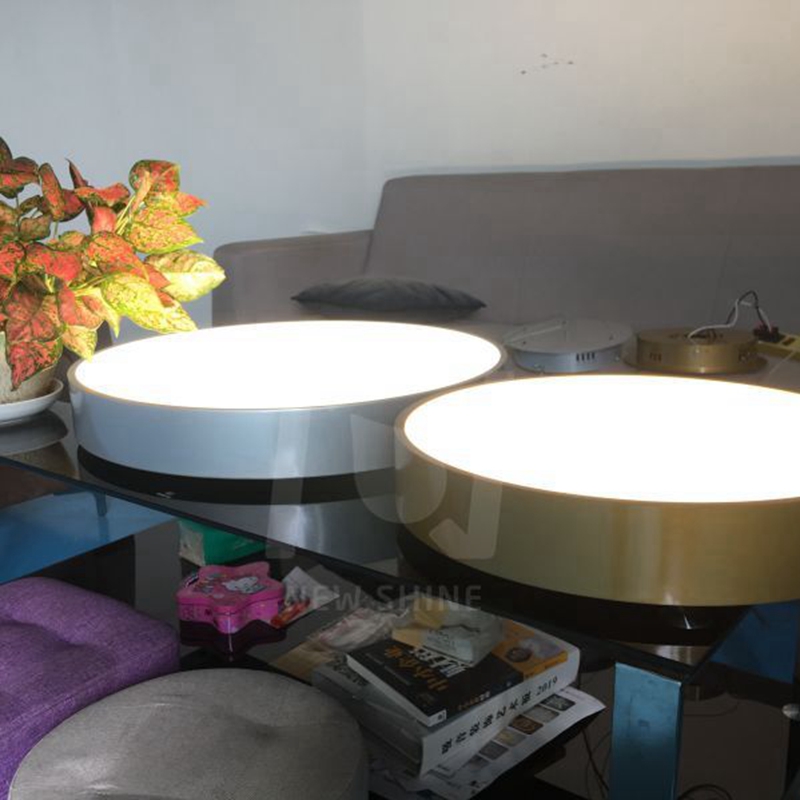

Round Ceiling Lamp Moon Light LL0112UDM

This Moon Light collection is one of fast mover at New Shine Lighting. A full range of sizes are available from D300mm(11.8") to D1200mm(47.2"), providing very nice and even lighting distribution without LED hot spots. Different mountings, suspended, surface mounted, recessed you can choose from to suit different architecture. Also this is patented-involved product, 3 in 1 installation providing flexibility to change the mountings.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0112UDM

Diameter(INCH): 18.9", 23.6", 35.4", 47.2"

Diameter(MM): 480mm, 600mm, 900mm, 1200mm

CCT: 3000K/3500K/4000K

Efficacy: 85lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Bridgelux or equivalent

Material: Aluminum+PC

Input Voltage: AC220-240V / AC120-277V

LED Lifetime: >50,000H

Mounting: Pendant, Surface mounted, Stem mounted, Recessed

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

 Quite nice craftsmanship.

 No dark area, soft and even light distribution.

 Can 3 in 1 version combination of suspend, surface mounted and stem mounted.

 Acoustic version with 38 acoustic felt colors for option.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material

LL0112UDM-50W

 (up 20w, down 30w)

50W D480*95 / D18.9*3.7 AC120-277V/
AC220-240V
≧90 3000K/
3500K/
4000K
≧0.9 85lm/w White/
black
120*2 surface mounted  Alu+PC

LL0112UDM-80W

 (up 30w, down 50w)

80W D600*95 / D23.6*3.7

LL0112UDM-120W

 (up 40w, down 80w)

120W D900*95 / D35.4*3.7

LL0112UDM-150W

 (up 50w, down 100w)

150W D1200*95 / D47.2*3.7
