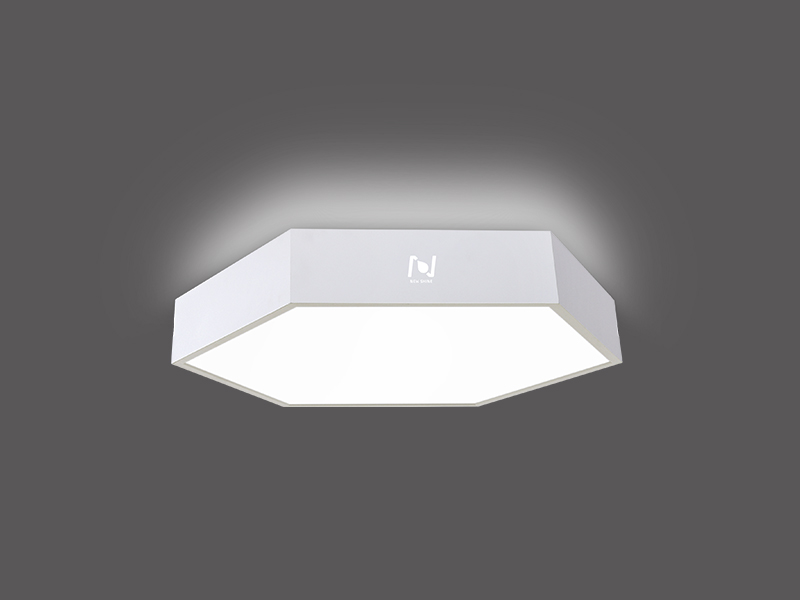

Direct Indirect Hexagon LED Panel Light Ceiling commercial lighting LL0186UDM-120W
Product specification:
Power | 120W |
Input Voltage | AC220-240V /AC120-277V |
CRI(Ra) | ≧90 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≧0.9 |
Efficiency | 85lm/w |
Material | Alu, PC |
Product size | 900*780*95mm / 35.43*30.71*3.74" |
Other products in the same family:
| Model No. | Power | Size | Input Voltage | CRI | CCT | PF | Efficacy | Body Color | Beam | Installation | Material |
LL0186S-25W | 25W | 480*416*80mm / 18.90*16.38*3.15" | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 85lm/w | White/ black | 120 | Suspended | Alu+PC |
LL0186S-40W | 40W | 600*520*80mm / 23.62*20.47*3.15" | |||||||||
LL0186S-90W | 90W | 900*780*80mm / 35.43*30.71*3.15" | |||||||||
LL0186S-180W | 180W | 1200*1040*80mm / 47.24*40.94*3.15" | |||||||||
LL0186UDS-50W (up 15w, down 35w) | 50W | 480*416*80mm / 18.90*16.38*3.15" | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 85lm/w | White/ black | 120*2 | Suspended | Alu+PC |
LL0186UDS-80W (up 24w, down 56w) | 80W | 600*520*80mm / 23.62*20.47*3.15" | |||||||||
LL0186UDS-120W (up 36w, down 84w) | 120W | 900*780*80mm / 35.43*30.71*3.15" | |||||||||
LL0186UDS-220W (up 66w, down 154w) | 220W | 1200*1040*80mm / 47.24*40.94*3.15" | |||||||||
LL0186M-25W | 25W | 480*416*95mm / 18.90*16.38*3.74" | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 85lm/w | White/ black | 120 | Surface Mounted | Alu+PC |
LL0186M-40W | 40W | 600*520*95mm / 23.62*20.47*3.74" | |||||||||
LL0186M-90W | 90W | 900*780*95mm / 35.43*30.71*3.74" | |||||||||
LL0186M-180W | 180W | 1200*1040*95mm / 47.24*40.94*3.74" | |||||||||
LL0186UDM-50W (up 15w, down 35w) | 50W | 480*416*95mm / 18.90*16.38*3.74" | AC220V-240V or AC120-277V | ≧90 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 85lm/w | White/ black | 120*2 | Surface Mounted | Alu+PC |
LL0186UDM-80W (up 24w, down 56w) | 80W | 600*520*95mm / 23.62*20.47*3.74" | |||||||||
LL0186UDM-120W (up 36w, down 84w) | 120W | 900*780*95mm / 35.43*30.71*3.74" | |||||||||
LL0186UDM-220W (up 66w, down 154w) | 220W | 1200*1040*95mm/ 47.24*40.94*3.74" |
Product specialty:
1. Good for use in office, school, hotel, reception room, shop, etc.
2. Suspended and surface mounted, easy installation and free maintenance.
3. Warranty is 5 years!
4. Accept customized!
Wide Applications in hotel, office, gym reception room, classroom, restaurant, etc.
Our core competencies:
1. New Shine Lighting focus on LED commercial lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!
2. Solid project experience for Europe, North America, Southeast Asia and Middle East market!
3. Quick solution provider, quick quotation within an hour and quick delivery in 2-4 weeks!
