Square Decorative Surface Mounted Office Lighting LL0214AM

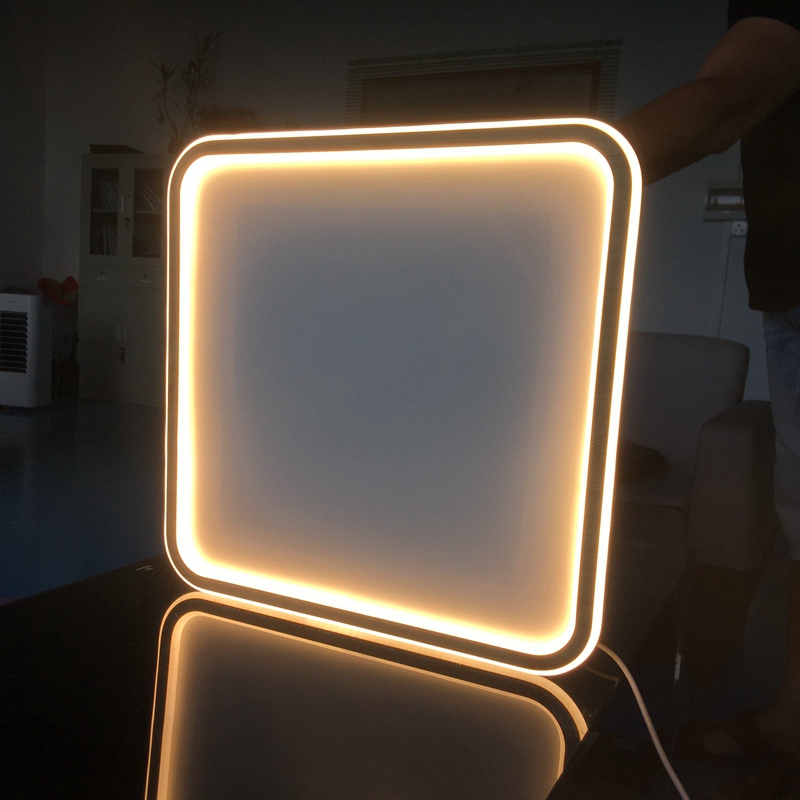

LED square cloud lighting with ultra slim design, only 0.71" body. Silicone lens provides uninterrupted 300 degree illumination with the perfect blend of good performance and visual comfort. Regular and acoustic version, covering round and rectangle shapes, with or without pattern in the middle.

Highly effective noise absorption, creating a comfortable and productive environment, increasing productivity. With best-in-class illumination, sound absorption and aesthetic appeal, meeting the needs of many different types of architectural environments. Greatly combine the elements of color, shape and sound, creating spaces that are as functional and conducive to great experiences.
Mark:
Standard Finish:
Customized Finish:
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Specification


Model: LL0214AS

Length(INCH): 11.8", 15.7", 19.7", 35.4", 43.3"

Length(MM): 300mm, 400mm, 500mm, 900mm, 1100mm

CCT: 3000K/3500K/4000K

Efficacy: 70lm/w

PF: ≧0.9

CRI: ≧90

Dimming: 0-10V

Driver: ARCATA or equivalent

LED: Samsung or equivalent

Material: Silicon, Aluminum, Polyester Fiber

Input Voltage: AC120-277V/ AC220-240V

LED Lifetime: >50,000H

Mounting: Pendant, Surface mounted

Package: PE Foam with master carton

Features


 Flexible MOQ.

 ETL listed, 5 years warranty.

 2 color finishes(black, white), can be customized.

 Quite nice craftsmanship.

 No dark area, soft and even light distribution.

 Acoustic version with 38 acoustic felt colors for option.

 300 degree emmiting versions are available.

 Good for use in hotel, office, public building, shopping mall, etc.

 The packaging has passed strict tests which is suitable for air shipping.

 Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.



Other Products In The Same Family

Model No. Power Size (mm/inch) Input Voltage(v) CRI CCT
(K)
PF Efficacy
(LM/W)
Body Color Beam (degree) Installation Material
LL0214AS-40W 40W 300*300*28/ 11.8*11.8*1.1 AC120-277V/
AC220-240V
≧90 3000K/
3500K/
4000K
≧0.9 70LM/W White/
Black
300 Central canopy  suspended with 5ft (1.5m) aircraft cables&power cables Silicon+Alu
LL0214AS-50W 50W 400*400*28/ 15.7*15.7*1.1
LL0214AS-72W 72W 500*500*28/ 19.7*19.7*1.1
LL0214AS-100W 100W 500*900*28/ 19.7*35.4*1.1
LL0214AS-150W 150W 1100*650*28/ 43.3*25.6*1.
