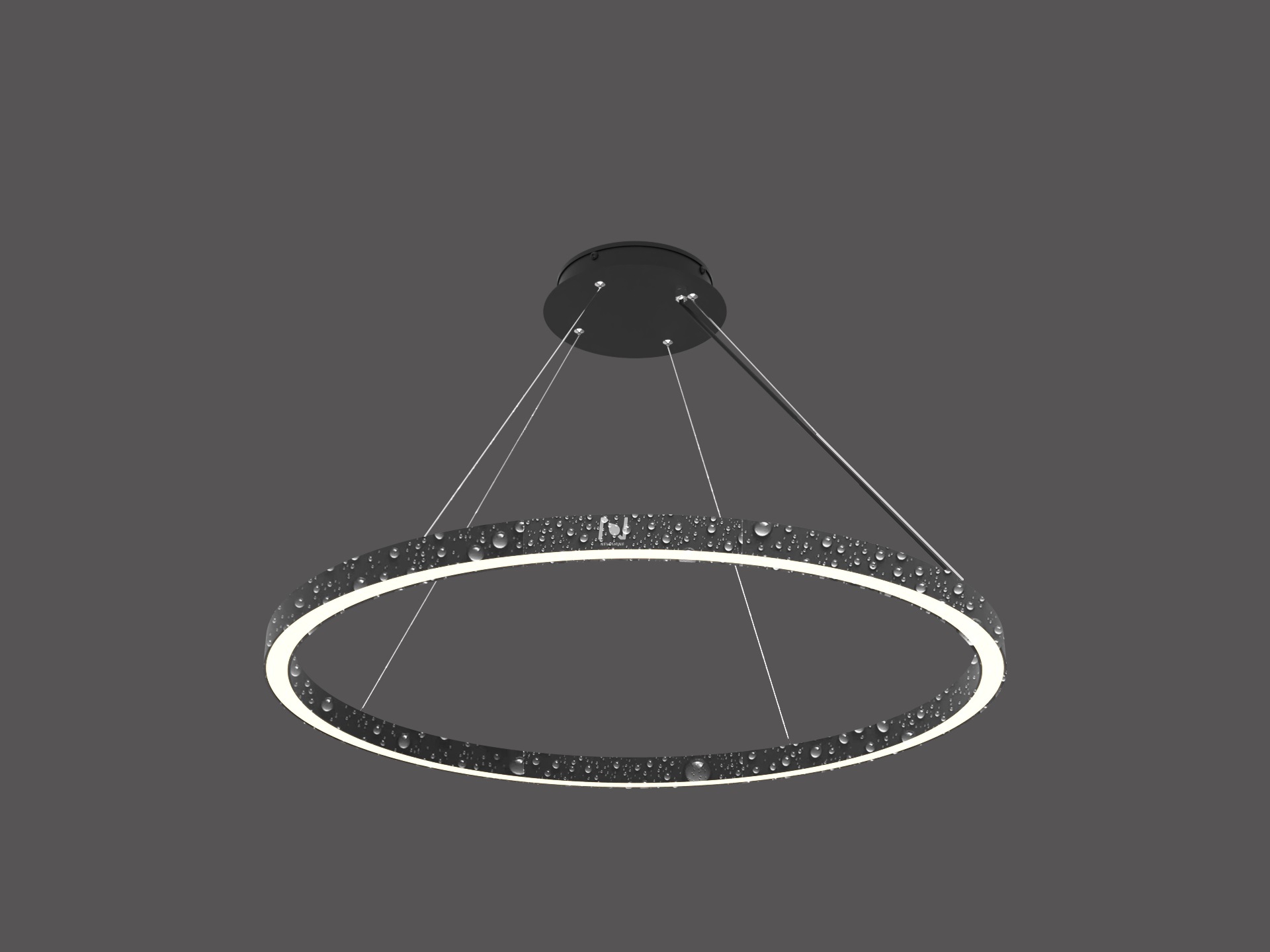

IP65 Outdoor Led Round Hanging Light LL0113S-D48-OR65
Product specification:
Power | 65W |
Input Voltage | AC220-240V, AC120-277V |
CRI(Ra) | ≥80 |
CCT(K) | 3000/3500/4000/5000 |
PF | ≥0.9 |
Efficiency | 70lm/w |
Material | Aluminum+PC |
Product size | 1200*32*38mm/47.2*1.3*1.5" |
Other products in the same family:
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0113S-D23-OR65 | 32W | D600*32*38mm D23.6*1.3*1.5" | AC120-277V / AC220-240V | ≧80 | 3000K/ 3500K/ 4000K/ 5000K | ≧0.9 | 70lm/w | White/ black/ silver | 120 | suspended with 1.5m power cable and safety cable | Alu+PC |
| LL0113S-D35-OR65 | 50W | D900*32*38mm D35.4*1.3*1.5" | |||||||||
| LL0113S-D48-OR65 | 65W | D1200*32*38mm D47.2*1.3*1.5" | |||||||||
| LL0113S-D59-OR65 | 80W | D1500*32*38mm D59.1*1.3*1.5" | |||||||||
| LL0113S-D79-OR65 | 110W | D2000*32*38mm D78.8*1.3*1.5" | |||||||||
| LL0113S-D98- OR65 | 140W | D2500*32*38mm D98.4*1.3*1.5" | |||||||||
| LL0113S-D118-OR65 | 170W | D3000*32*38mm D118.1*1.3*1.5" | |||||||||
| LL0113S-D158-OR65 | 220W | D4000*32*38mm D157.5*1.3*1.5" | |||||||||
| LL0113S-D197-OR65 | 280W | D5000*32*38mm D196.9*1.3*1.5" |
Product specialties:
1. It’s in 32W(600mm), 50W(900mm), 65W(1200mm), 80W(1500mm), 110W(2000mm), 140W(2500mm), 170W(3000mm), 220W(4000mm), 280W(5000mm) design.
Three color finishes(black, white,silver), can be customized.
2. Good for use in hotel, reception room, shopping mall, etc. IP65，also suitable for outdoor.
3. 0-10V or dali dimming is available.
4. Warranty is 5 years!
Welcome to know about us:
1. New Shine Lighting focus on LED architectural lighting design and manufacturing for years, RD and sales team have worked in lighting average over 10 years!
2. Solid project experience for Europe, North America, Southeast Asia and Middle East market!
3. Quick architectural lighting solutions provider, quick quotation can be provided within an hour and quick delivery can be provided in 2-4 weeks!
Client Feedback:
"Thank you for the sharing, New Shine had been known for quality workmanship and service."
