Specification
Model: LL0208S
Diameter(INCH): 15.7", 23.6", 31.5", 39.4", 47.2", 59.1"
Diameter(MM): 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm
CCT: 3000K/3500K/4000K
Efficacy: 70lm/w
PF: ≧0.9
CRI: ≧90
Dimming: 0-10V
Driver: ARCATA or equivalent
LED: Samsung or equivalent
Material: Aluminum, PMMA
Input Voltage: AC120-277V/ AC220-240V
LED Lifetime: >50,000H
Mounting: Pendant
Package: PE Foam with master carton
Features
◆ Flexible MOQ.
◆ ETL listed, 5 years warranty.
◆ 2 color finishes(black, white), can be customized.
◆ Quite nice craftsmanship.
◆ No dark area, soft and even light distribution.
◆ Acoustic version with 38 acoustic felt colors for option.
◆ Direct, direct/indirect, inner, outer emmiting versions are available.
◆ Good for use in hotel, office, public building, shopping mall, etc.
◆ The packaging has passed strict tests which is suitable for air shipping.
◆ Packing with single piece per carton is good fit for stock, bulk pack is suitable for ordering per project.

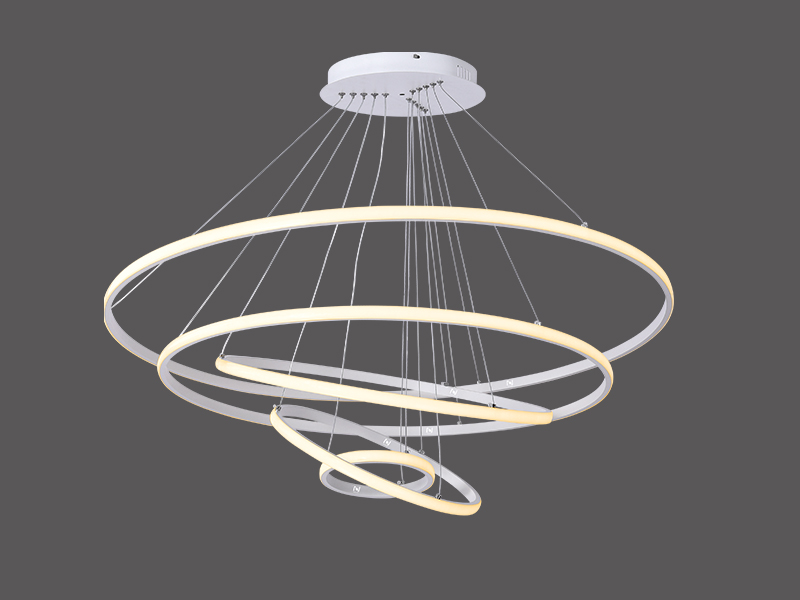

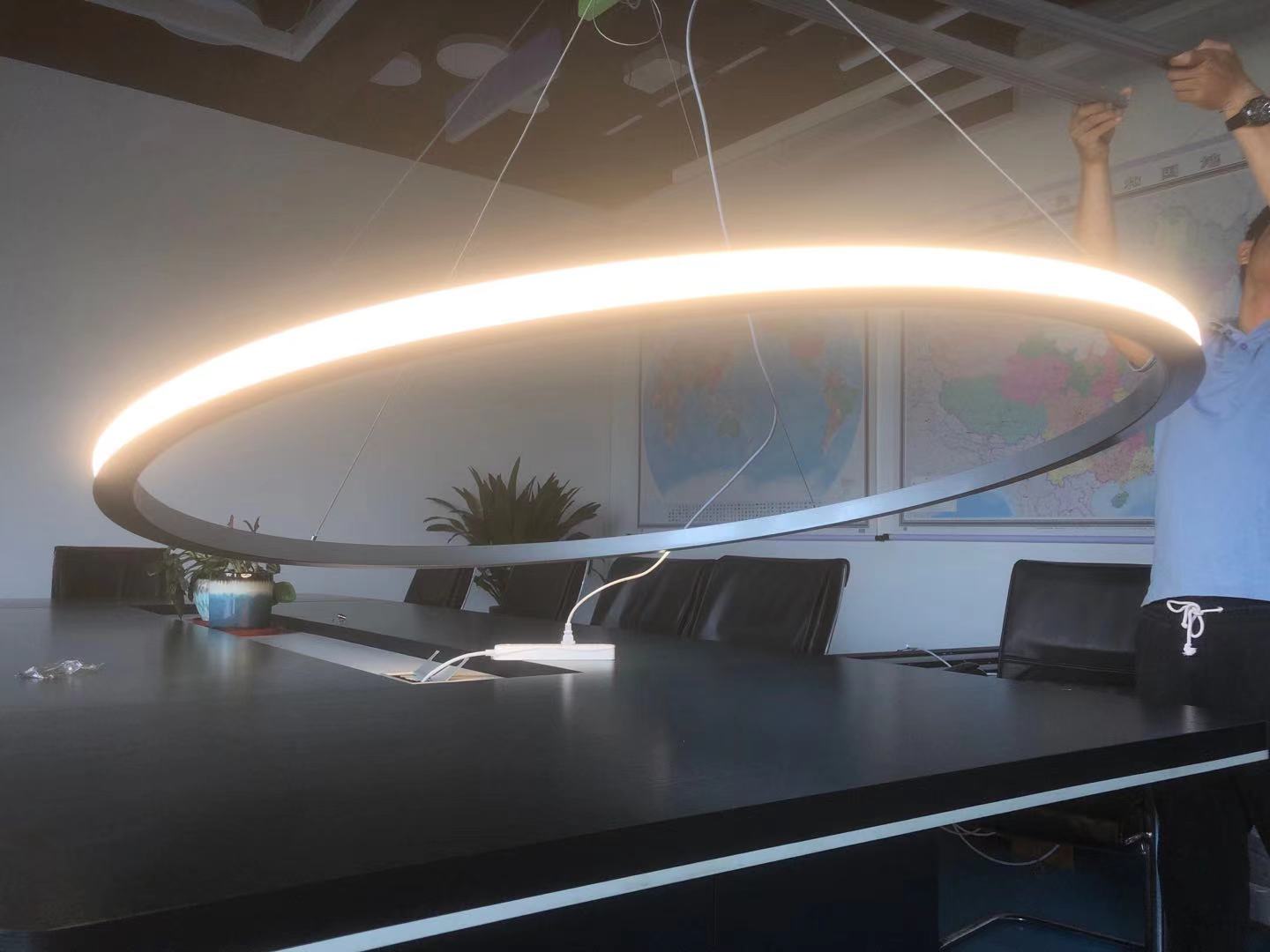

◆ For pendant ring light, size D5ft(D1500mm) and below D5ft(D1500mm), suspended with central canopy; for size above D5ft(D1500mm), suspended to ceiling straight.
Other Products In The Same Family
| Model No. | Power | Size (mm/inch) | Input Voltage(v) | CRI | CCT (K) | PF | Efficacy (LM/W) | Body Color | Beam (degree) | Installation | Material |
| LL0208S-20W | 20W | D400*10*20/ D15.7*0.4*0.8 | AC120-277V/ AC220-240V | ≧80 | 3000K/ 3500K/ 4000K | ≧0.9 | 70LM/W | White/ Black | 300 | Central canopy suspended with 5ft (1.5m) aircraft cables&power cables | Alu+Silicon |
| LL0208S-30W | 30W | D600*10*20/ D23.6*0.4*0.8 | |||||||||
| LL0208S-40W | 40W | D800*10*20/ D31.5*0.4*0.8 | |||||||||
| LL0208S-50W | 50W | D1000*10*20/ D39.4*0.4*0.8 | |||||||||
| LL0208S-60W | 60W | D1200*10*20/ D47.2*0.4*0.8 | |||||||||
| LL0208S-80W | 80W | D1500*10*20/ D59.1*0.4*0.8 |
Download
 |
|
|
|
